Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Saturation Voltage | 1.5V |
| Collector Emitter Voltage (VCEO) | 100V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | -6A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 3MHz |
| Gain Bandwidth Product | 3MHz |
| Height | 15.748mm |
| hFE Min | 15 |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 10.2616mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 6A |
| Max Frequency | 3MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 65W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 3MHz |
| Voltage Rating (DC) | -100V |
| Weight | 4.535924g |
| Width | 4.826mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

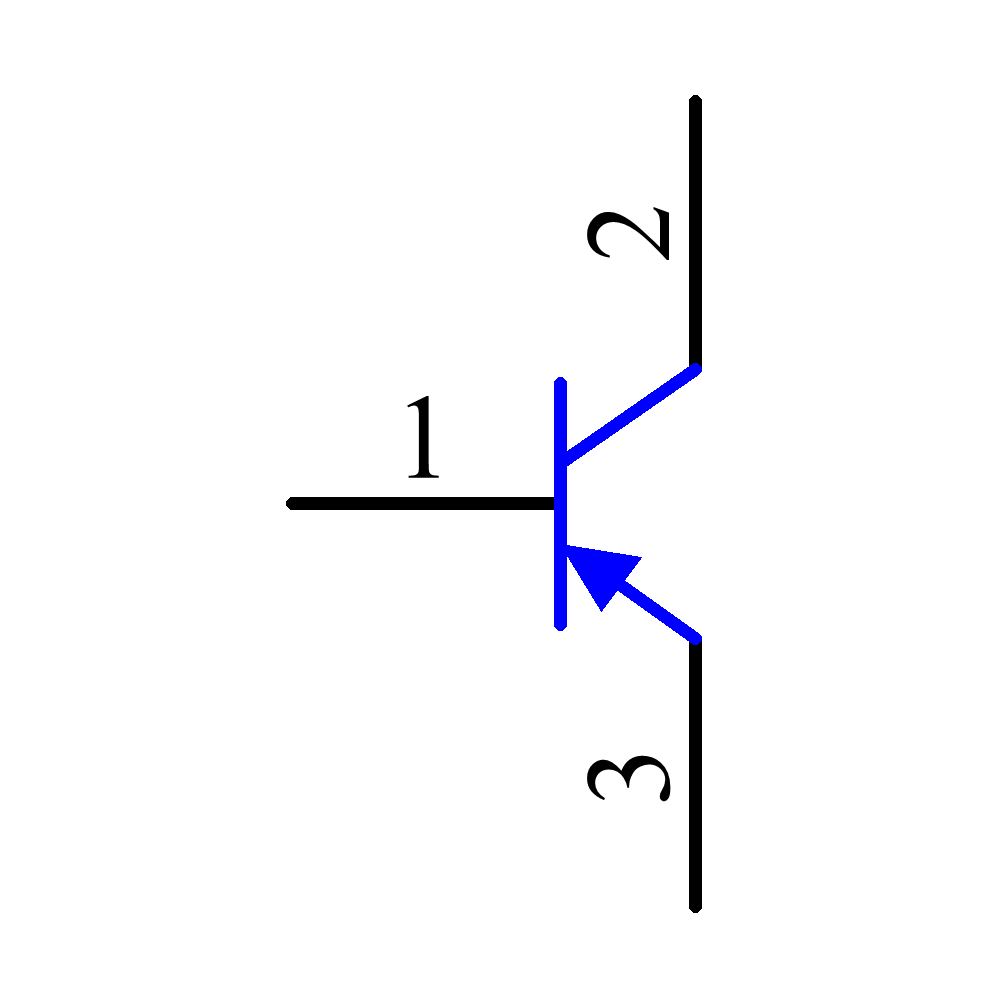

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Central Semiconductor | Obsolete | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Motorola | Production | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete |
