onsemi - TIP48G

TIP48G - onsemi

Transistor, Bipolar, Si, NPN, High Voltage, Power, Vceo 300VDC, IC 1A, Pd 40W, TO-220

 Datasheets

Technical Details

Case/Package TO-220-3
China RoHS Non-Compliant
Collector Base Voltage (VCBO) 400V
Collector Emitter Breakdown Voltage 300V
Collector Emitter Saturation Voltage 1V
Collector Emitter Voltage (VCEO) 300V
Country of Origin Mainland China
Current Rating 1A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Frequency 10MHz
Gain Bandwidth Product 10MHz
Height 15.748mm
hFE Min 10
Introduction Date 1999-01-01
Lead Free Lead Free
Length 10.2616mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Collector Current 1A
Max Frequency 10MHz
Max Operating Temperature 150°C
Max Power Dissipation 40W
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity NPN
Power Dissipation 40W
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8541290080
Transition Frequency 10MHz
Voltage Rating (DC) 300V
Weight 453.59237mg
Width 4.826mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

onsemi TIP48G | Master Electronics

Master Electronics

Datasheets

 Farnell
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

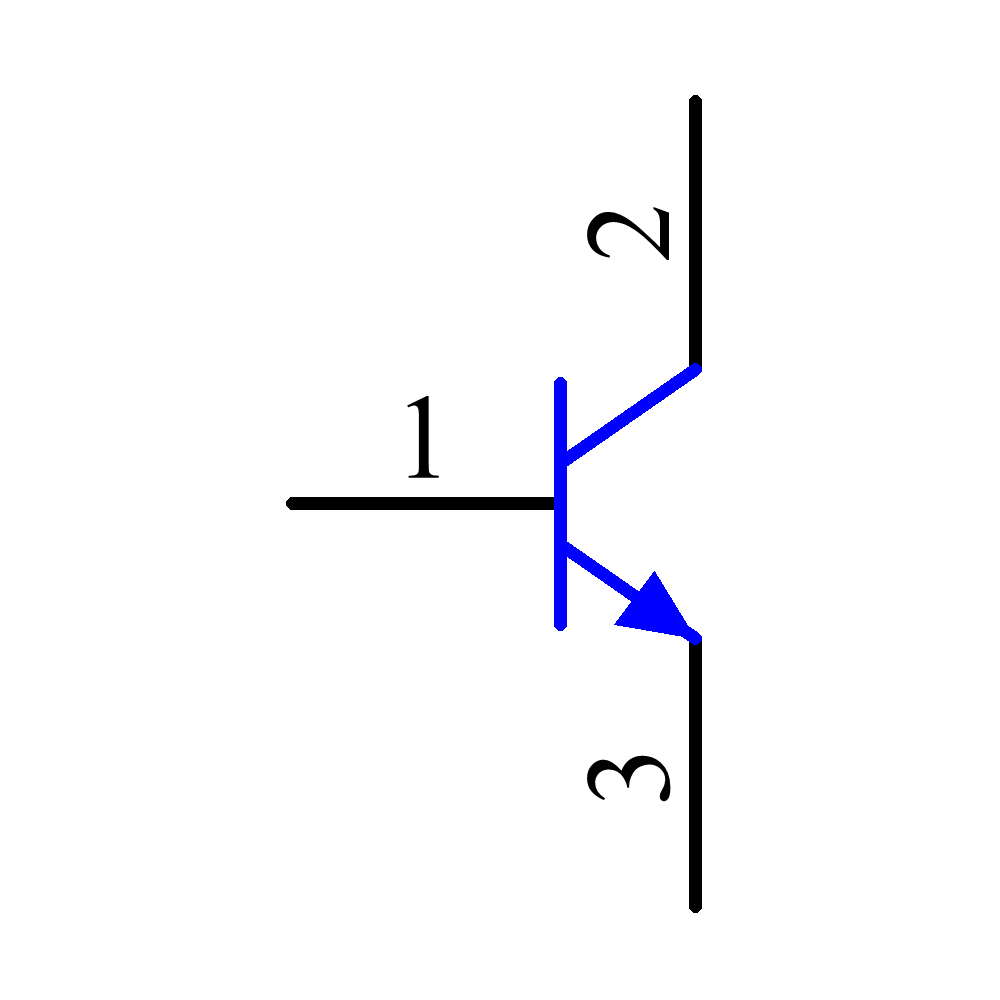

Symbol

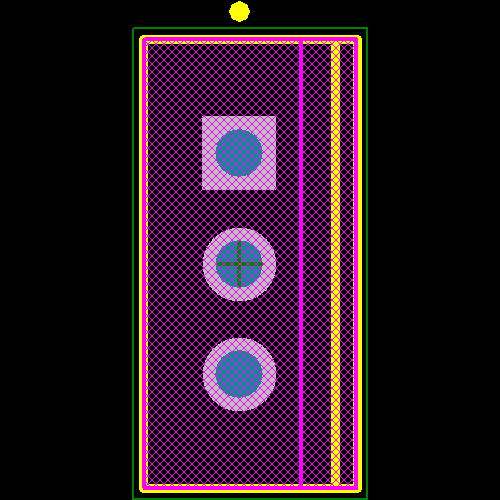

Footprint
