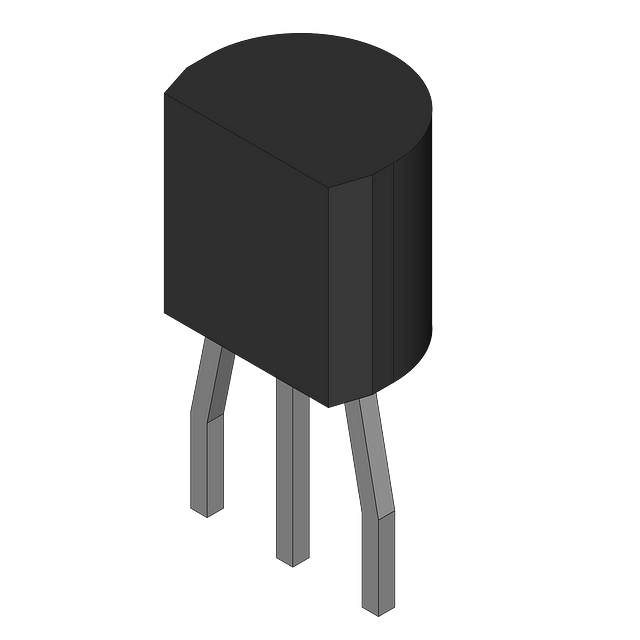

ZTX749A - onsemi
Bulk Through Hole PNP Single Bipolar (BJT) Transistor 100 @ 1A 2V 100nA ICBO 1W 100MHz
Technical Details
| Case/Package | TO-226 |
| Collector Base Voltage (VCBO) | -45V |
| Collector Emitter Breakdown Voltage | -35V |
| Collector Emitter Saturation Voltage | -500mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Current Rating | -2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | -5V |
| Height | 9.89mm |
| hFE Min | 15 |
| Introduction Date | 2002-02-14 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Collector Current | 2A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | -35V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 12661
|
$ | 0.1718 | 0.1426 | 0.1271 | |||||
| Verical |
US: 6000
|
$ | 0.1589 | |||||||
| Verical |
US: 3990
|
$ | 0.1589 | |||||||
