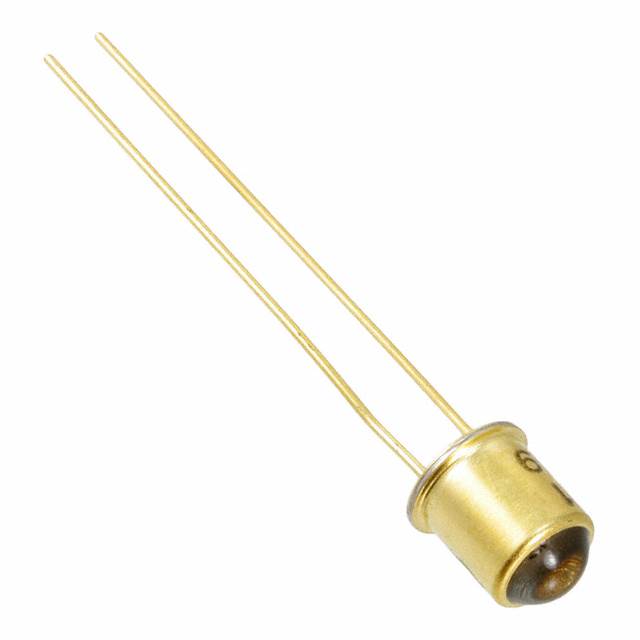

OP131 - Optek
Emitter Ir 935Nm 100Ma To-46 Rohs Compliant: Yes |Tt Electronics/optek Technology OP131
Technical Details
| Case/Package | TO-46-2 |
| Country of Origin | Mexico |
| Depth | 5.59mm |
| Export Control Classification Number (ECCN) Code | 3A001.a.2.b |
| Forward Current | 100mA |
| Forward Voltage | 1.8V |
| Height | 6.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 1993-01-01 |
| Length | 5.59mm |
| Lens Style | Circular, Dome |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Output Power | 3mW |
| Peak Wavelength | 935nm |
| Power Dissipation | 200mW |
| Power Rating | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 2V |
| Rise Time | 1µs |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 100mA |
| Viewing Angle | 18° |
| Wavelength | 935nm |
| Width | 5.84mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
