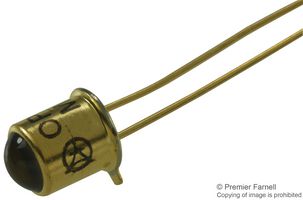

OP133 - Optek
OP133 Series 935 nm 18° 100 mA Dome Hermetic Infrared Emitting Diode - TO-46
Technical Details
| Case/Package | TO-46-2 |
| Country of Origin | Mexico |
| Export Control Classification Number (ECCN) Code | 3A001.a.2.b |
| Forward Current | 100mA |
| Forward Voltage | 1.8V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 1993-01-01 |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Lens Style | Circular, Round |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Output Power | 5mW |
| Peak Wavelength | 935nm |
| Power Dissipation | 200mW |
| REACH SVHC | Yes |
| Reverse Voltage | 2V |
| Rise Time | 1µs |
| RoHS | Compliant |
| Schedule B | 8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000 |
| Shape | Round |
| Viewing Angle | 18° |
| Wavelength | 935nm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
