OP165A - Optek
Plastic infrared emitting diode, IF Typ 20 mA, Wavelength 935nm, T-1-2, RoHS
Technical Details
| Case/Package | T |
| Country of Origin | Mexico |
| Depth | 3.94mm |
| Forward Current | 50mA |
| Forward Voltage | 1.6V |
| Head Diameter | 3mm |
| Housing Material | Plastic |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2011-05-17 |
| Lead Free | Lead Free |
| Lead Length | 12.7mm |
| Lead Pitch | 1.27mm |
| Length | 3.94mm |
| Lens Style | Circular, Colored, Diffused |
| Lifecycle Status | Production |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 100mW |
| Max Reverse Leakage Current | 100µA |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Operating Supply Voltage | 1.6V |
| Orientation | Top View |
| Peak Pulse Current | 3A |
| Peak Wavelength | 935nm |
| Power Rating | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 2V |
| Rise Time | 1µs |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 20mA |
| Viewing Angle | 18° |
| Wavelength | 935nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

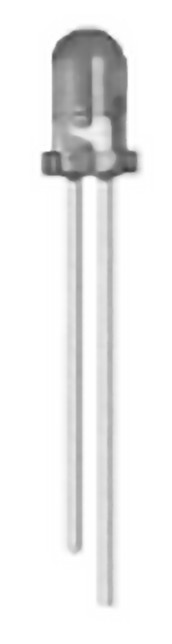

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Everlight | Production | ||
| Honeywell | Obsolete | ||
| Toshiba | Obsolete | ||
| Lite-On | Production | ||
| Excelitas Technology | Production | ||
| Kingbright | Production | ||
| Stanley Electric | Obsolete | ||
| Hamamatsu Photonics | Unknown | ||
| Panasonic | Obsolete | ||
| Vishay | Obsolete |
