OP295A - Optek
Plastic infrared emitting diode, IF Typ 100 mA, Wavelength 890nm, T-1-2, RoHS
Technical Details
| Country of Origin | Mexico |
| Depth | 5.97mm |
| Fall Time | 250ns |
| Forward Current | 150mA |
| Forward Voltage | 4V |
| Head Diameter | 4.95mm |
| Height | 8.64mm |
| Housing Material | Plastic |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 1993-01-01 |
| Lead Free | Lead Free |
| Lead Length | 19.05mm |
| Lead Pitch | 2.54mm |
| Length | 5.97mm |
| Lens Style | Circular, Round |
| Lifecycle Status | Production |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 333mW |
| Max Reverse Leakage Current | 10µA |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Peak Pulse Current | 5A |
| Peak Wavelength | 890nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| Rise Time | 500ns |
| RoHS | Compliant |
| Schedule B | 8541402000 |
| Shape | Round |
| Test Current | 10mA |
| Viewing Angle | 20° |
| Wavelength | 890nm |
| Width | 5.97mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

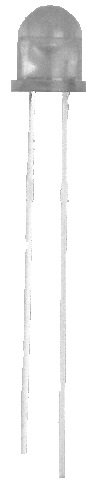

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Everlight | Production | ||
| Honeywell | Obsolete | ||
| Toshiba | Obsolete | ||
| Lite-On | Production | ||
| Excelitas Technology | Production | ||
| Kingbright | Production | ||
| Stanley Electric | Obsolete | ||
| Hamamatsu Photonics | Unknown | ||
| Panasonic | Obsolete | ||
| Vishay | Obsolete |
