OP750A - Optek
NPN silicon phototransistor, Voltage - Collector Emitter Breakdown 30V, Radial-2, RoHS
Technical Details
| Case/Package | Radial |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Country of Origin | Mexico |
| Dark Current | 100nA |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.70.80 |
| Introduction Date | 1999-06-01 |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 30mA |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Pins | 2 |
| Orientation | Side View |
| Packaging | Bulk |
| Polarity | NPN |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541407080, 8541407080|8541407080|8541407080|8541407080|8541407080 |
| Shape | Round |
| Wavelength | 935nm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

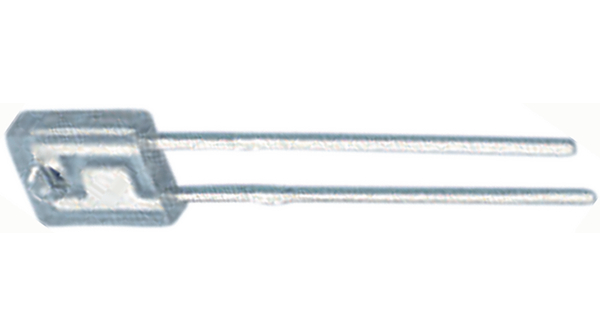

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Lite-On | Production | ||
| NTE Electronics | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Lite-On | Production | ||
| Lite-On | Obsolete | ||
| Optek | Production | ||
| BI Technologies | Obsolete |
