OPB618 - Optek
Sensor Optical 3.81Mm Pcb Mount Rohs Compliant: Yes |Tt Electronics/optek Technology OPB618
Technical Details
| Country of Origin | Mexico |
| Fall Time | 30ns |
| Forward Current | 50mA |
| Forward Voltage | 1.6V |
| Input Current | 10mA |
| Introduction Date | 1993-01-01 |
| Lifecycle Status | Production |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Operating Supply Current | 12mA |
| Operating Supply Voltage | 1.6V |
| Output Configuration | NPN - Open Collector |
| Output Voltage | 18V |
| Power Dissipation | 240mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Response Time | 30ns |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| Rise Time | 30ns |
| RoHS | Compliant |
| Sensing Distance | 3.81mm |
| Touchscreen | Infrared (IR) |
| Voltage Rating (DC) | 18V |
| Width | 6.096mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

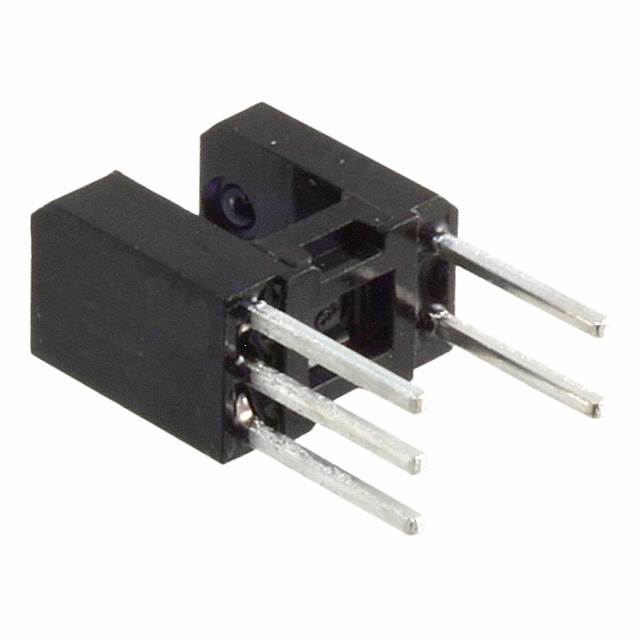

Images
