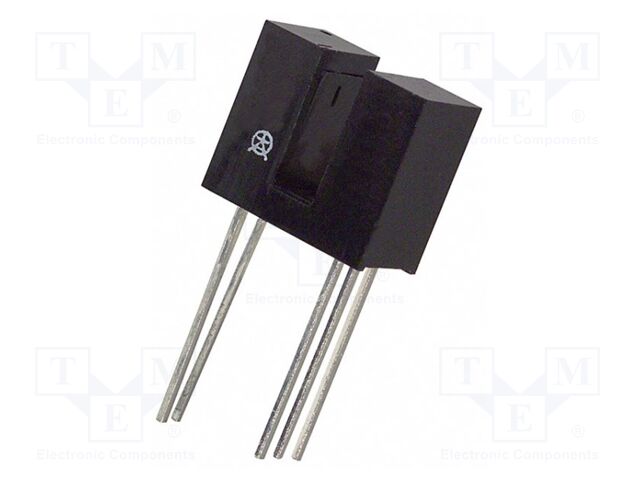

OPB961N51 - Optek
Photointerrupter Transmissive 3.18mm Photologic, Open Collector, Buffer Automotive 5-Pin Bag
Technical Details
| Fall Time | 70ns |
| Forward Current | 40mA |
| Forward Voltage | 1.7V |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Panel, Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 18V |
| Output Configuration | NPN - Open Collector |
| Output Voltage | 13.9V |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Response Time | 70ns |
| Reverse Breakdown Voltage | 2V |
| Reverse Voltage | 2V |
| Reverse Voltage (DC) | 2V |
| Rise Time | 70ns |
| RoHS | Compliant |
| Schedule B | 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000 |
| Sensing Distance | 3.175mm |
| Voltage Rating (DC) | 10V |
| Wavelength | 850nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
