Technical Details
| Approvals | UL |
| Case/Package | Module |
| Current Rating | 2A |
| Depth | 41.1mm |
| Insulation Resistance | 100MΩ |
| Lead Free | Contains Lead |
| Length | 48.8mm |
| Max Input Current | 8.1mA |
| Max Operating Temperature | 70°C |
| Max Output Current | 3A |
| Min Operating Temperature | -30°C |
| Mount | PCB, Plug-In, Rack, Through Hole |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 3A |
| Output Type | Digital |
| Output Voltage | 140V |
| RoHS | Non-Compliant |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-On Delay Time | 8.3ms |
| Voltage Rating (AC) | 120V |
| Voltage Rating (DC) | 120V |
| Width | 12.2mm |
Compliance
RoHS : Unconfirmed

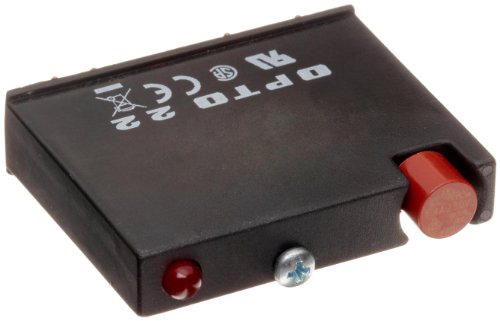

Images
Onlinecomponents.com
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Classic Components |
US: 5300
|
$ | ||||||||
| Classic Components |
US: 4
|
$ | ||||||||
| Freelance Electronics |
US: 10
|
$ | 31.10 | 24.74 | 21.68 | 21.68 | 21.68 | 21.68 | ||
