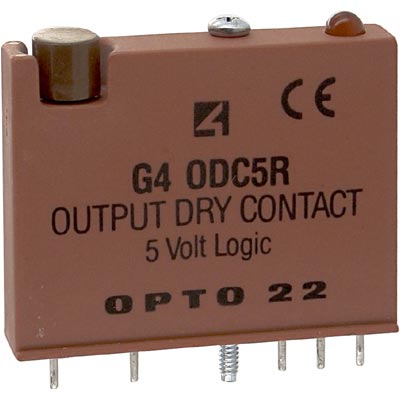

G4ODC5R - Opto 22
Digital DC Output Module 100 VDC Output Voltage - nominal 5 VDC Logic Voltage - nominal
Technical Details
| Approvals | CE |
| Case/Package | Module |
| Coil Voltage (DC) | 5V |
| Contact Resistance | 200mΩ |
| Current Rating | 500mA |
| Depth | 3.9878mm |
| Height | 41.1mm |
| Introduction Date | 2021-02-11 |
| Max Input Current | 8.1mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Rack, Snap-In |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Poles | 1 |
| Output Current | 500mA |
| Output Type | Digital |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Plug |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 130V |
| Voltage Rating (DC) | 130V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Master Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Quest |
US: 3
|
$ | 48.00 | 48.00 | 48.00 | 48.00 | 48.00 | 48.00 | ||
| Classic Components |
US: 32
|
$ | ||||||||
| Classic Components |
US: 3
|
$ | ||||||||
