Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Blue |
| Dominant Wavelength | 470nm |
| Forward Current | 30mA |
| Forward Voltage | 3.7V |
| Height | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Green |
| Introduction Date | 2013-10-23 |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Style | Colorless, Diffused, Rectangular |
| Lens Transparency | Clear |
| Lifecycle Status | Obsolete |
| Luminous Flux | 1.56lm |
| Luminous Intensity | 280mcd |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8541402000 |
| Shape | Rectangular |
| Terminal Pitch | 2.9mm |
| Test Current | 20mA |
| Viewing Angle | 120° |
| Wavelength | 470nm |
| Width | 1.1mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

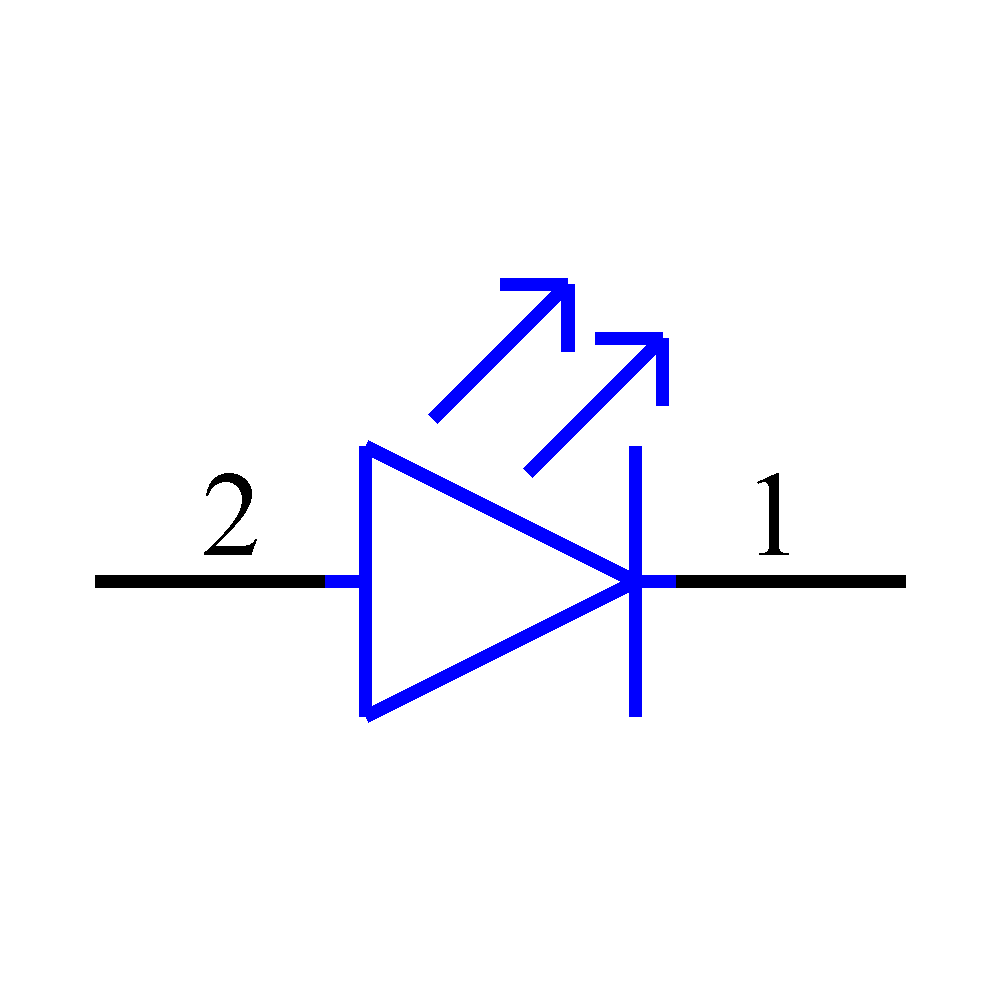

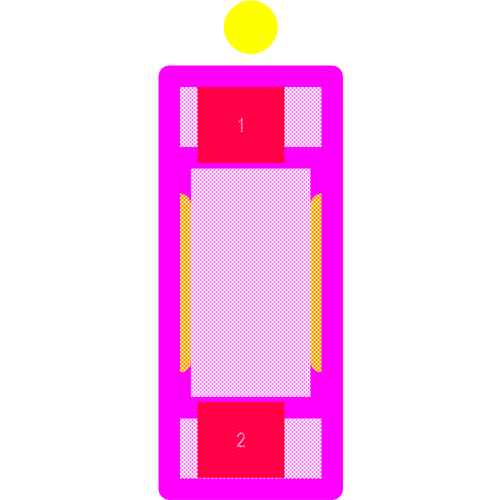

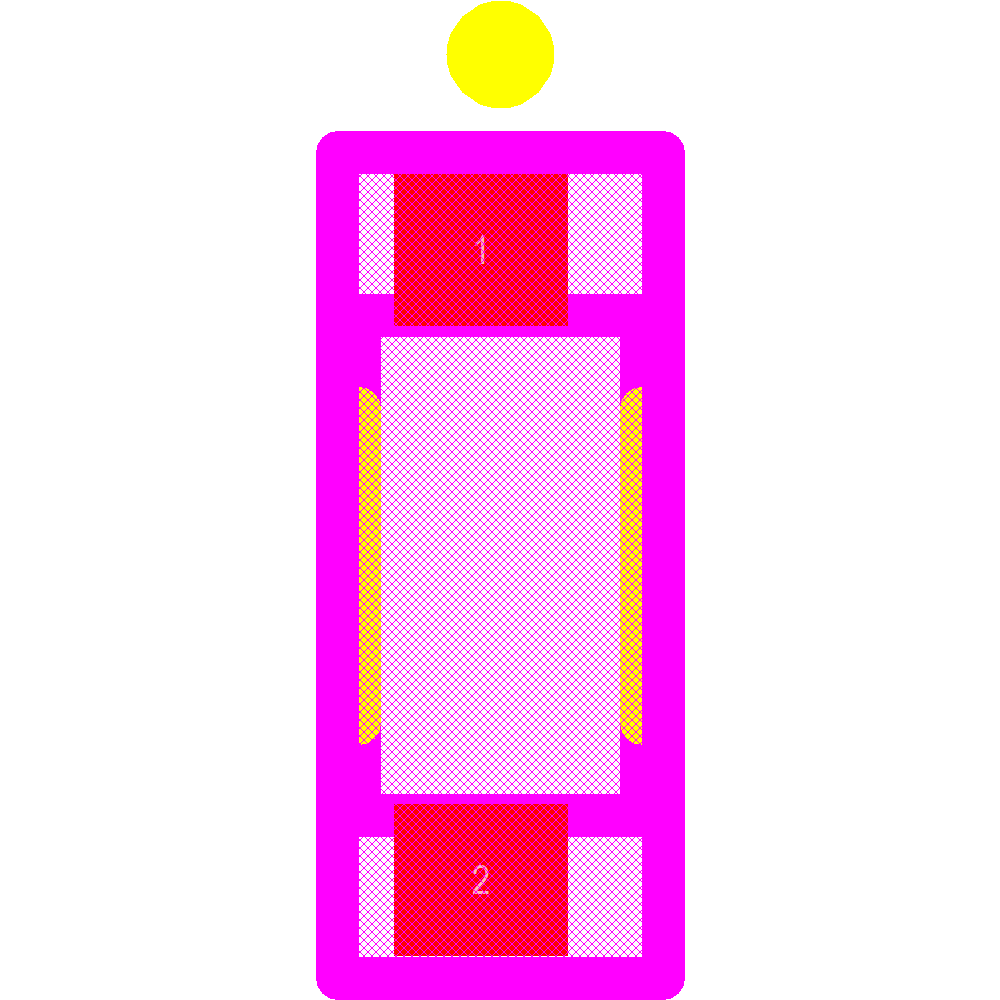

Images
