Technical Details
| Case/Package | PLCC |
| China RoHS | Compliant |
| Color | Green |
| Depth | 3mm |
| Dominant Wavelength | 570nm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Current | 30mA |
| Forward Voltage | 2V |
| Height | 2.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2000-07-17 |
| Length | 3.4mm |
| Lens Style | Circular, Colorless, Diffused, Round |
| Lifecycle Status | Obsolete |
| Luminous Flux | 60mlm |
| Luminous Intensity | 19.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Peak Wavelength | 572nm |
| Power Dissipation | 95mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 12V |
| RoHS | Compliant |
| Shape | Round |
| Terminal Pitch | 3mm |
| Test Current | 10mA |
| Viewing Angle | 120° |
| Voltage | 25V |
| Wavelength | 570nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

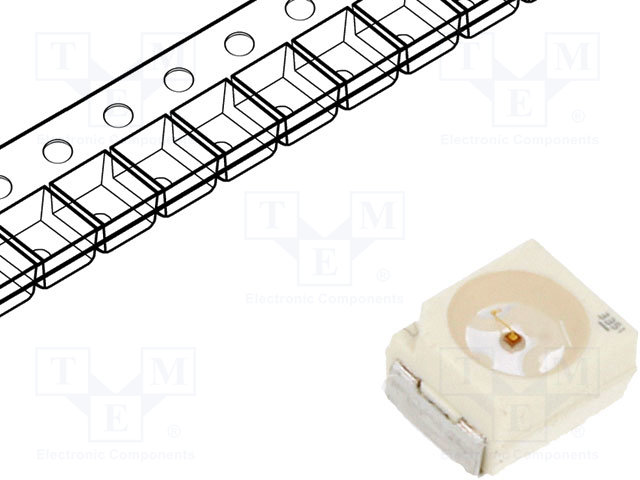

Images
