SFH 4556 - Osram Opto
63mW/sr@100mA 40～ 1.5V 860nm Plugin, D=4.7mm Infrared LED Emitters ROHS
Technical Details
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Fall Time | 12ns |
| Forward Current | 100mA |
| Forward Voltage | 1.5V |
| Height | 7.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2009-05-14 |
| Length | 5.5mm |
| Lens Style | Circular, Dome, Round |
| Lifecycle Status | Production |
| Max Operating Temperature | 100°C |
| Max Supply Voltage | 2.4V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Output Power | 50mW |
| Packaging | Bulk |
| Peak Wavelength | 860nm |
| Power Rating | 180mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| Rise Time | 12ns |
| RoHS | Compliant |
| Schedule B | 8541402000 |
| Shape | Round |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 40° |
| Width | 5.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

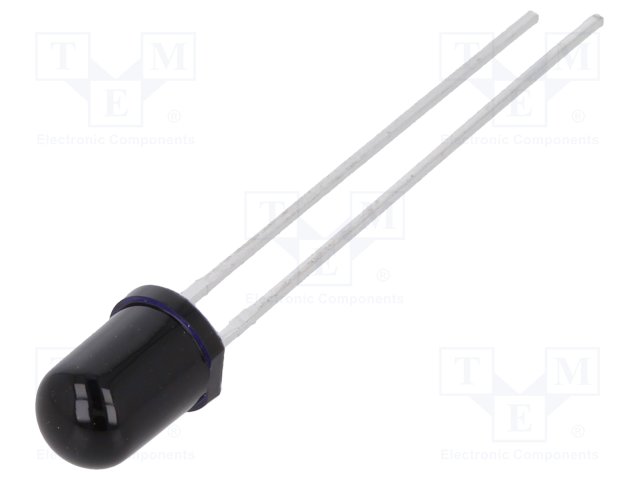

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Osram | Obsolete | ||
| Osram Opto | Obsolete | ||
| Osram Opto | Obsolete | ||
| Osram Opto | Obsolete | ||
| Everlight | Production | ||
| Honeywell | Obsolete | ||
| Toshiba | Obsolete | ||
| Lite-On | Production | ||
| Excelitas Technology | Production |
