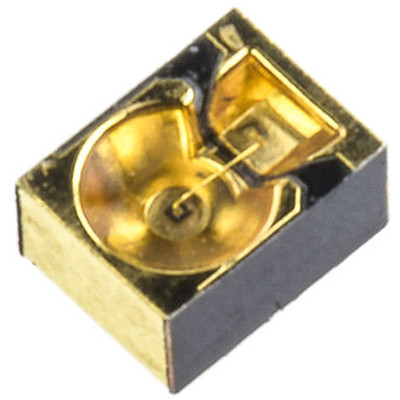

SFH 4646 - Osram Opto
Narrow beam LED in MIDLED package (940 nm) Infrared LED, 1-Element, 950nm
Technical Details
| Depth | 2.35mm |
| Forward Current | 70mA |
| Forward Voltage | 2V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2009-09-08 |
| Length | 3.3mm |
| Lens Style | Circular, Round |
| Lifecycle Status | EOL |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Output Power | 35mW |
| Packaging | Tape and Reel |
| Peak Wavelength | 950nm |
| Power Dissipation | 140W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 70mA |
| Viewing Angle | 20° |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
