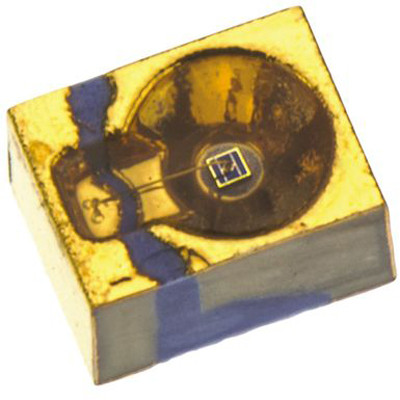

SFH 4650 - Osram Opto
Narrow Beam Led in Midled Package (850 Nm) Infrared Led, 1-ELEMENT, 860NM
Technical Details
| China RoHS | Compliant |
| Depth | 2.35mm |
| Forward Current | 100mA |
| Forward Voltage | 2.4V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2004-10-27 |
| Length | 3.3mm |
| Lens Style | Circular, Round |
| Lifecycle Status | EOL |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Output Power | 40mW |
| Peak Wavelength | 860nm |
| Power Dissipation | 180mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 100mA |
| Viewing Angle | 40° |
| Wavelength | 860nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

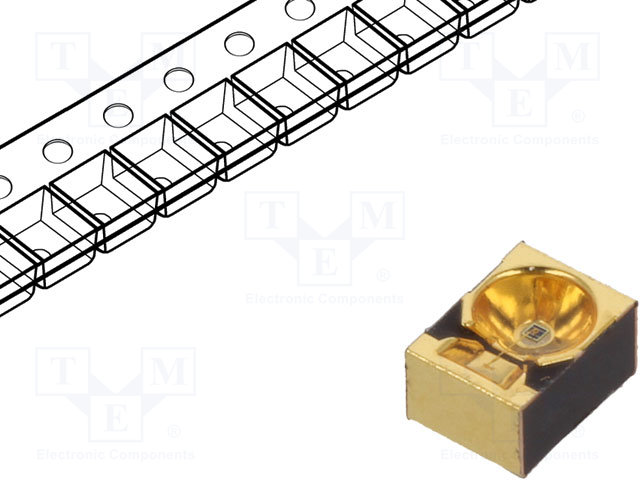

Images
TME
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| TME |
PL: 4703
|
$ | 0.9862 | 0.7939 | 0.6546 | 0.519 | 0.4832 | 0.4832 | ||
| EBV Elektronik |
EU: 0
|
$ | ||||||||
| Newark |
US: 0
|
$ | 1.21 | 0.791 | 0.666 | 0.603 | 0.473 | 0.473 | ||
