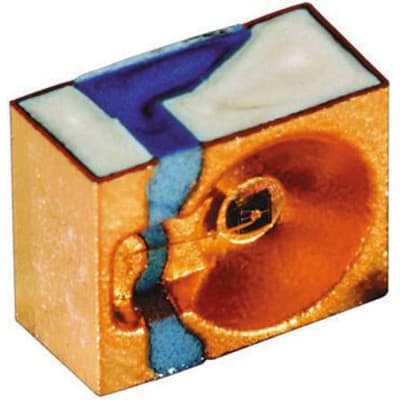

SFH 4655 - Osram Opto
Infrared Emitter 860nm 90mW/sr Circular Right Angle Automotive AEC-Q101 2-Pin MIDLED T/R
Technical Details
| China RoHS | Compliant |
| Contact Plating | Tin |
| Depth | 2.35mm |
| Forward Current | 100mA |
| Forward Voltage | 2.4V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2004-10-27 |
| Length | 3.3mm |
| Lens Style | Circular, Round |
| Lifecycle Status | EOL |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 180mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Output Power | 40mW |
| Peak Wavelength | 850nm |
| Power Dissipation | 180mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 100mA |
| Viewing Angle | 40° |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 0
|
$ | 1.24 | 0.876 | 0.876 | 0.654 | 0.523 | 0.428 | ||
| Arrow Electronics |
US: 0
|
$ | 0.3472 | |||||||
| Newark |
US: 0
|
$ | 1.21 | 1.04 | 0.867 | 0.739 | 0.565 | 0.565 | ||
