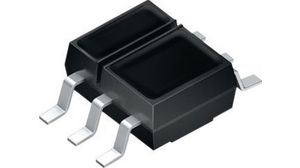

SFH 9206 - Osram Opto
Diffuse Photoelectric Sensor, 1mm Min, 5mm Max, Rectangular, Surface Mount
Technical Details
| Ambient Temperature Range High | 100°C |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 16V |
| Collector Emitter Voltage (VCEO) | 30V |
| Fall Time | 40µs |
| Forward Current | 50mA |
| Forward Voltage | 1.45V |
| Height | 1.9mm |
| Introduction Date | 2015-02-04 |
| Length | 4mm |
| Lifecycle Status | Production |
| Max Collector Current | 10mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Pins | 6 |
| Operating Supply Current | 50mA |
| Output Current | 600µA |
| Output Type | Phototransistor |
| Power Consumption | 14.5mW |
| REACH SVHC | Yes |
| Response Time | 30µs |
| Rise Time | 30µs |
| RoHS | Compliant |
| Schedule B | 8541406050, 8541406050|8541406050|8541406050|8541406050|8541406050 |
| Sensing Distance | 5mm |
| Turn-On Delay Time | 40µs |
| Wavelength | 950nm |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

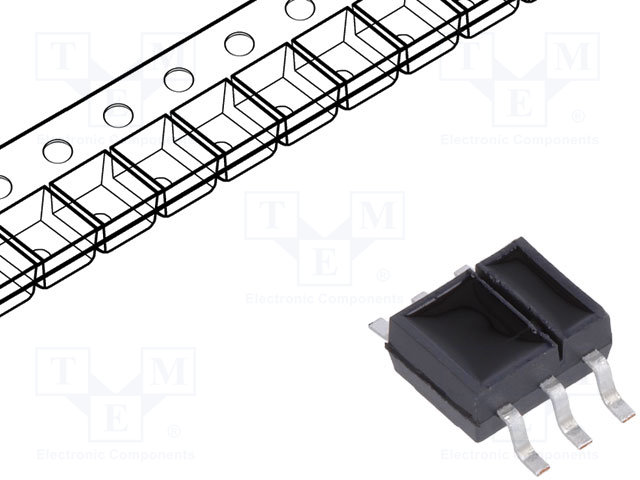

Images
