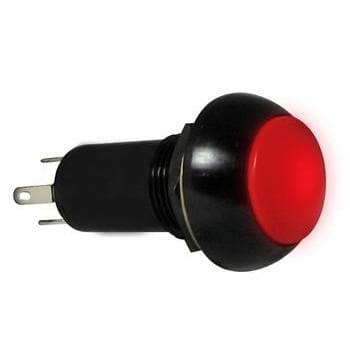

LP3-41H322W - Otto Engineering
Pushbutton Switch, SPST, Momentary, 5A, 28VDC, Quick Connect Terminal, Panel Mount
Technical Details
| Actuator Length | 6.35mm |
| Actuator Material | Polyethylene |
| Color | Black, White |
| Contact Current Rating | 5A |
| Contact Resistance | 25mΩ |
| Contact Voltage Rating (AC) | 115V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 29.972mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Introduction Date | 2017-12-11 |
| Length | 14.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Operating Force | 13.345N |
| RoHS | Compliant |
| Sealable | IP68S |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
Images
