LP9-11111D26 - Otto Engineering

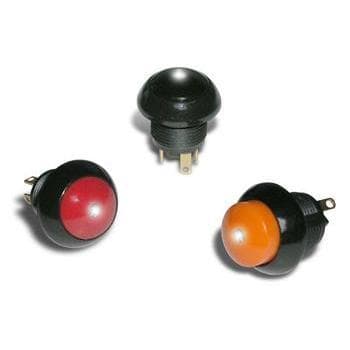

Pushbutton Switch, SPST, Momentary-tactile, 5A, 28VDC, Solder Terminal, Panel Mount-threaded
Technical Details
| Actuator Length | 6.858mm |
| Contact Current Rating | 5A |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 115V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 11.68mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Introduction Date | 2007-06-19 |
| Length | 11.38mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Mount | Flush |
| Operating Force | 9.79N |
| RoHS | Compliant |
| Sealable | IP68 |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
