P5-321225 - Otto Engineering
Pushbutton Switch, SPST, On-off, Alternate, 10A, 28VDC, Screw Terminal, Panel Mount-threaded
Technical Details
| Actuator Length | 11.0998mm |
| Actuator Material | Nylon |
| Contact Current Rating | 10A |
| Contact Plating | Silver |
| Contact Voltage Rating (AC) | 115V |
| Electrical Life | 25kcycles |
| Height | 22.26mm |
| Length | 22.23mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Voltage Rating (DC) | 28V |
| Operating Force | 17.79N |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED, IP64 |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed

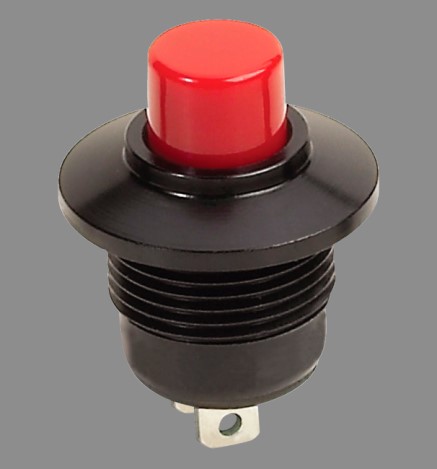

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production |
