Technical Details
| Actuator Length | 6.35mm |
| Actuator Material | Polyethylene, Thermoplastic |
| Color | Black, Red |
| Contact Current Rating | 10A |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Resistance | 25mΩ |
| Contact Voltage Rating (AC) | 105V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 17.35mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Introduction Date | 2014-10-02 |
| Length | 22.225mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Mount | Screw |
| Operating Force | 11.12N |
| RoHS | Compliant |
| Sealable | IP64, IP68S, WATER PROOF |
| Terminal Material | Brass |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed

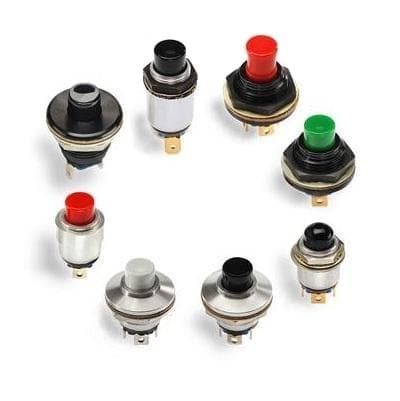

Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Rafi | Production | ||
| Rafi | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 228
|
$ | 241.67 | 241.67 | 241.67 | 241.67 | 241.67 | 241.67 | ||
| Heilind Europe |
EU: 0
|
$ | ||||||||
