Technical Details
| Actuator Length | 6.35mm |
| Contact Current Rating | 20A |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 115V |
| Current Rating | 10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 24.56mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Introduction Date | 2005-03-09 |
| Length | 14.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 20A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Mount | Bushing |
| Operating Force | 13.34N |
| Ratings | IP68 |
| RoHS | Compliant |
| Sealable | IP64, IP68 |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 115V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed

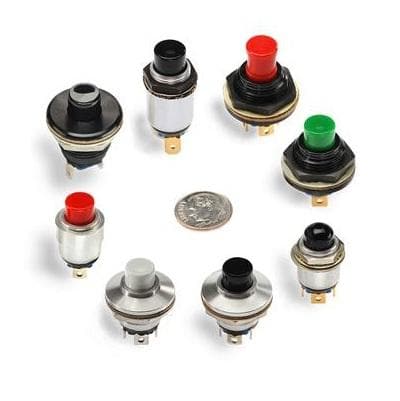

Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Obsolete | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 241
|
$ | 399.52 | 399.52 | 399.52 | 399.52 | 399.52 | 399.52 | ||
| Heilind Europe |
EU: 0
|
$ | ||||||||
