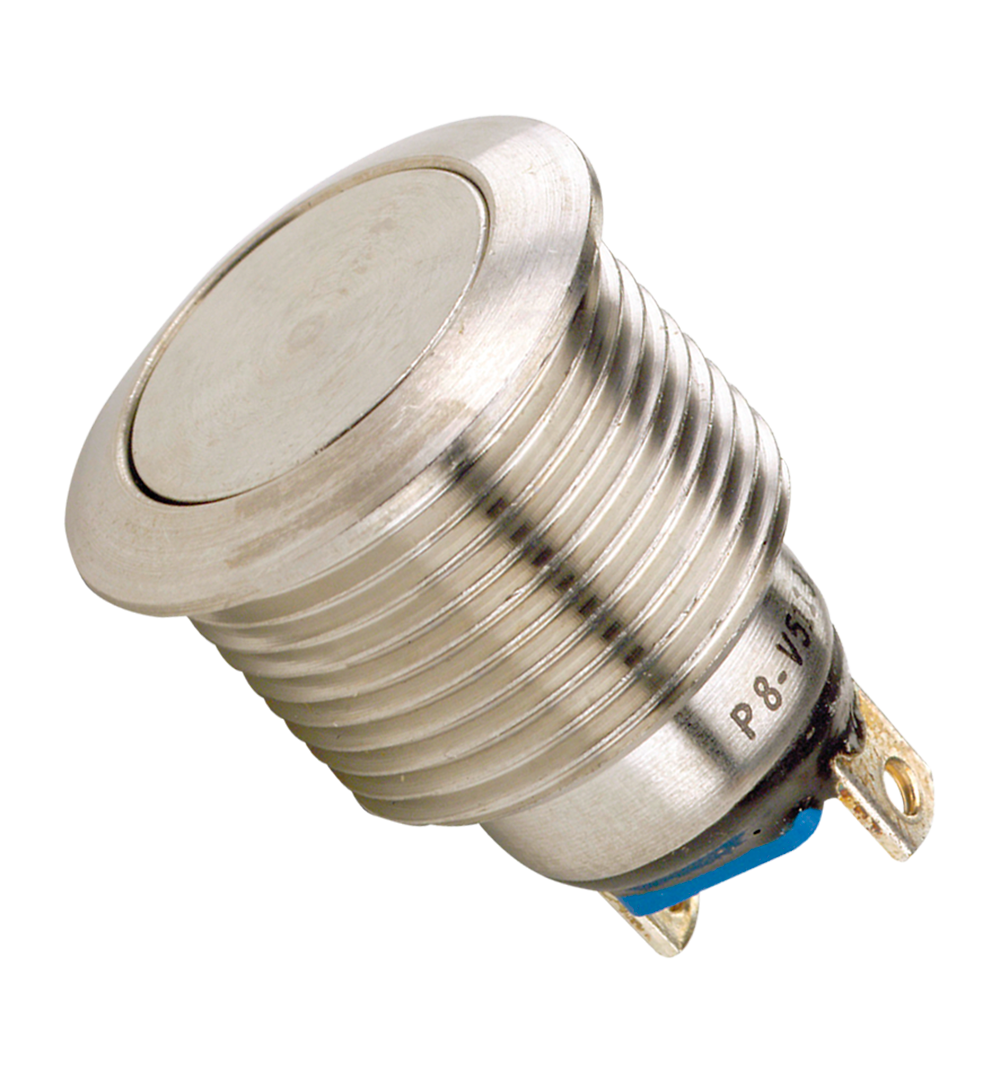

P8-V126311 - Otto Engineering
Pushbutton Switch, DPDT, Momentary-tactile, 20A, 28VDC, Screw Terminal, Panel Mount-threaded
Technical Details
| Actuator Length | 4.0132mm |
| Contact Current Rating | 20A |
| Contact Voltage Rating (AC) | 115V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 24.56mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Introduction Date | 2005-03-09 |
| Length | 14.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 20A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Operating Force | 13.34N |
| RoHS | Compliant |
| Sealable | IP64, IP68 |
| Throw Configuration | DPDT |
Compliance
RoHS : Unconfirmed
Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production | ||
| Otto Engineering | Production |
