Electromechanical > Relays > Solid State Relays

AQV251G - Panasonic

Relay SSR 50mA 1.5V DC-IN 3.5A 30V AC/DC-OUT 6-Pin PDIP Tube

Technical Details

Case/Package	DIP
Contact Resistance	35mΩ
Forward Current	50mA
Input Current	50mA
Isolation Voltage	1500Vrms
Lead Free	Lead Free
Lifecycle Status	Production
Load Current	3.5A
Max Operating Temperature	85°C
Max Output Voltage	30V
Min Operating Temperature	-40°C
Number of Elements	1
Number of Pins	6
On-State Resistance	80mΩ
Output Current	3.5A
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	Relay
Resistance	80mΩ
RoHS	Compliant
Termination	PC Pin
Test Voltage	1.5kV
Throw Configuration	SPST

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

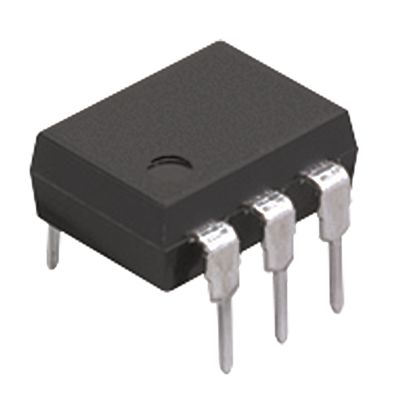

Panasonic AQV251G | RS

RS

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

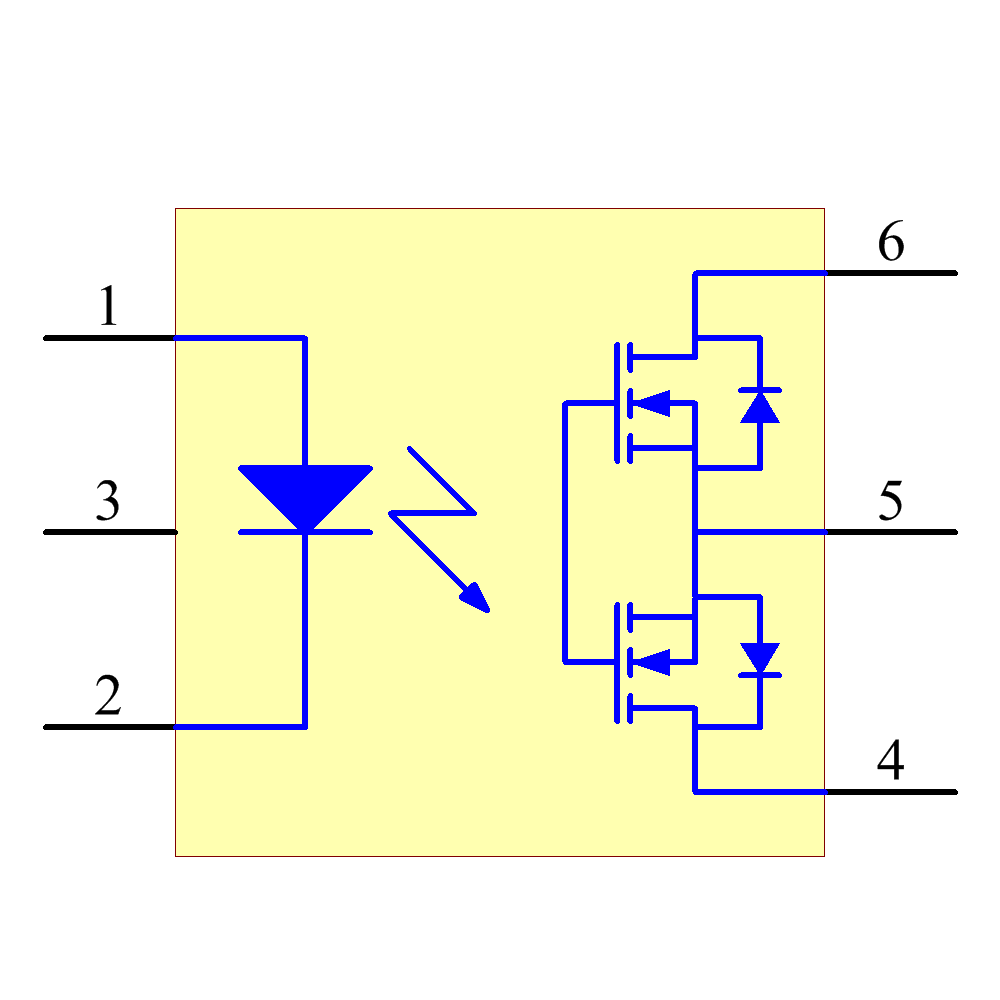

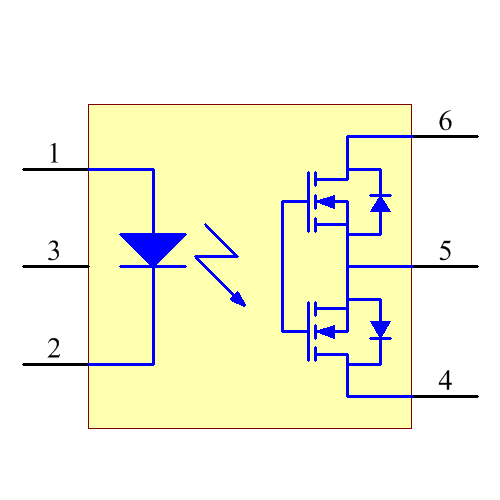

AQV251G Symbol - Panasonic

AQV251G Symbol - Panasonic

AQV251G Symbol - Panasonic

AQV251G Symbol - Panasonic

‹ ›

Footprint

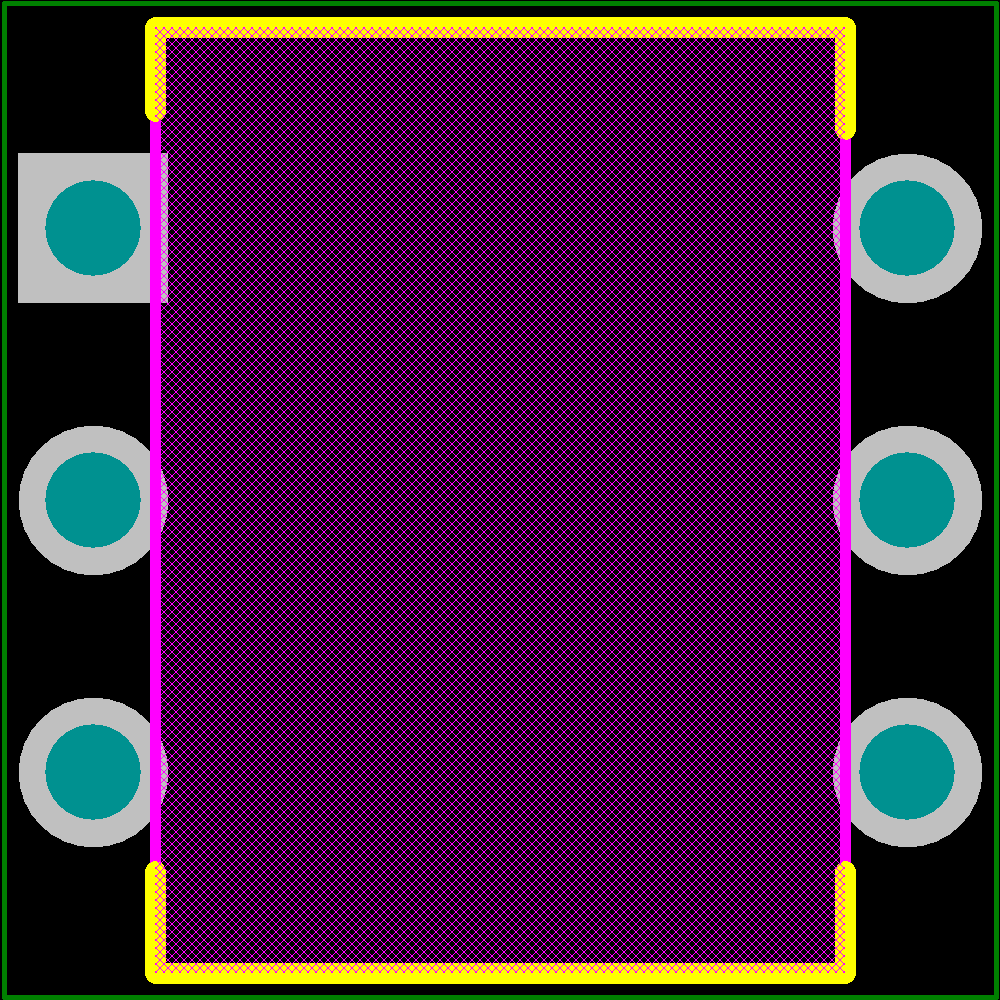

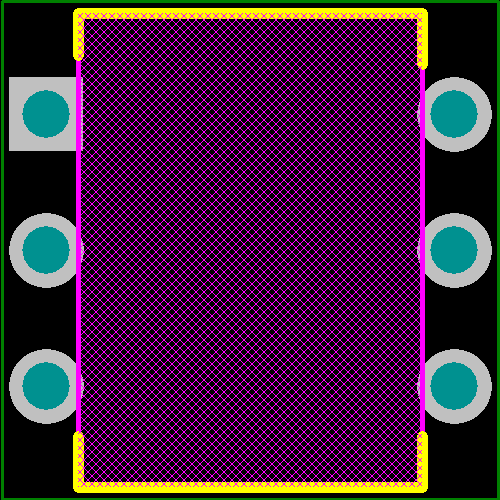

AQV251G Footprint - Panasonic

AQV251G Footprint - Panasonic

AQV251G Footprint - Panasonic

AQV251G Footprint - Panasonic

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
World Products	WPPM-3526D	Unknown
Sensata /Crydom	G2-DB02-SR	Obsolete
IXYS	LAA120E	Obsolete
Omron	G3VM-2F-S	Obsolete
AT&T	LH1540AT	Unknown
Clare	LCA120C	Unknown
Panasonic	AQW225N	Obsolete
Panasonic	AQV225NAX	Obsolete
Panasonic	AQV225N	Obsolete
OK International	OCM246	Unknown

See more alternatives See less alternatives
