ESB-33133 - Panasonic
Pushbutton Switch, DPDT, Momentary, 0.2A, 14VDC, Solder Terminal, Through Hole-straight
Technical Details
| Contact Current Rating | 200mA |
| Contact Plating | Silver |
| Current Rating | 200mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 6mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Introduction Date | 2006-09-25 |
| Lead Free | Lead Free |
| Length | 9.85mm |
| Life (Cycles) | 30kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 200mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 14V |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 4N |
| Orientation | Vertical |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (DC) | 14V |
| Width | 10mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

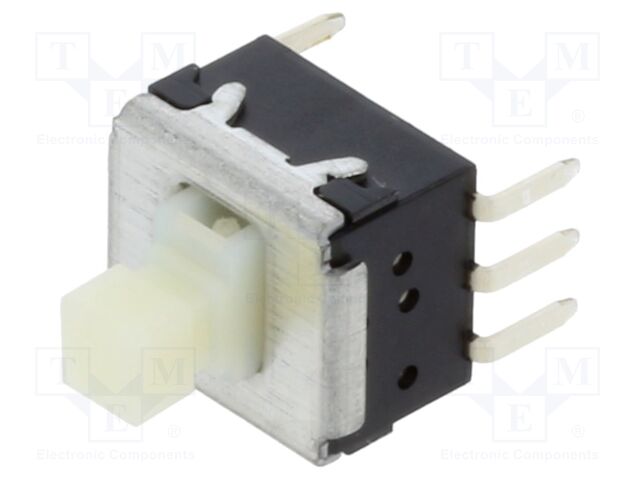

Images
