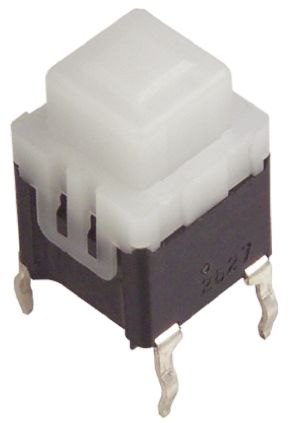

ESE-20D323 - Panasonic
Pushbutton Switch, SPST, Momentary, 0.1A, 14VDC, Solder Terminal, Through Hole-straight
Technical Details
| Contact Current Rating | 100mA |
| Current Rating | 100mA |
| Height | 8.9mm |
| Lead Free | Lead Free |
| Length | 7.9mm |
| Lifecycle Status | EOL |
| Max Current Rating | 100mA |
| Max Operating Temperature | 80°C |
| Max Voltage Rating (DC) | 14V |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 3N |
| Orientation | Vertical |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 14V |
| Width | 7.8mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
