ETCE680MCL - Panasonic
Panasonic ETCE680MCL - Conductive Polymer Tantalum Solid Capacitors (POSCAP)
Technical Details
| Capacitance | 680µF |
| Case/Package | 2917 |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Country of Origin | Indonesia, Japan |
| Dissipation Factor | 10% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESR (Equivalent Series Resistance) | 12mΩ |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 2.9972mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.21.00.50 |
| Introduction Date | 2015-03-20 |
| Leakage Current | 170µA |
| Length | 7.3mm |
| Life (Hours) | 1000hours |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| REACH SVHC | Yes |
| Ripple Current | 3.5A |
| RoHS | Compliant |
| Part Series | TC |
| Tolerance | 20% |
| Voltage Rating | 2.5V |
| Voltage Rating (DC) | 2.5V |
| Width | 4.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

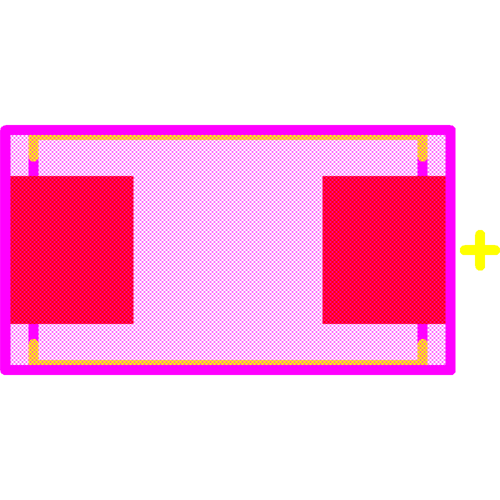

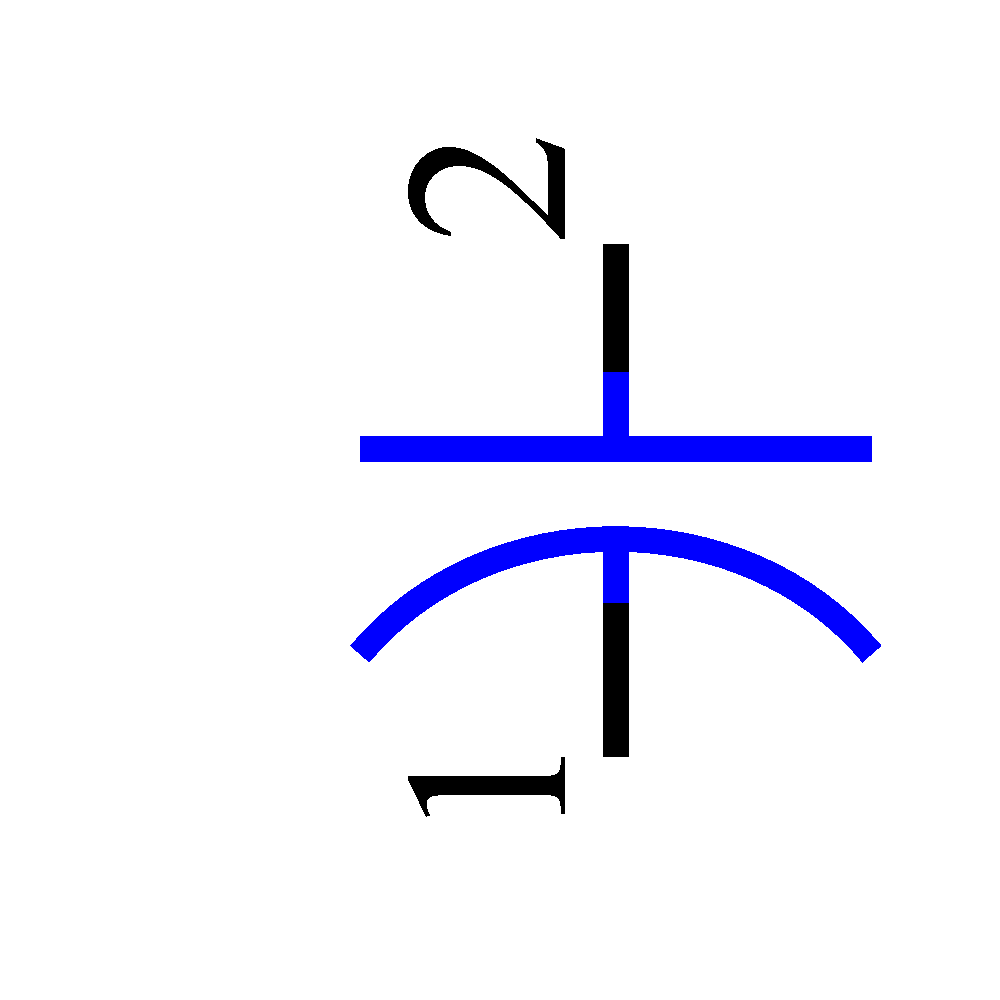

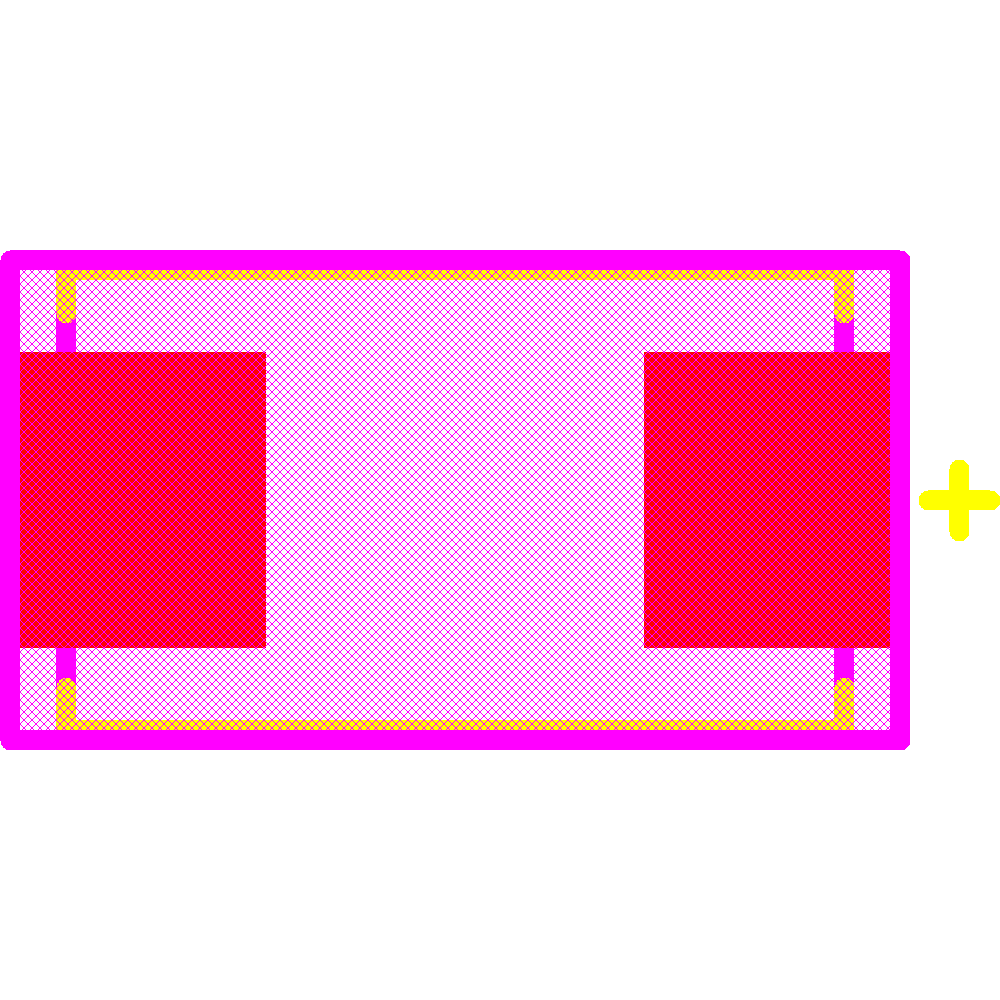

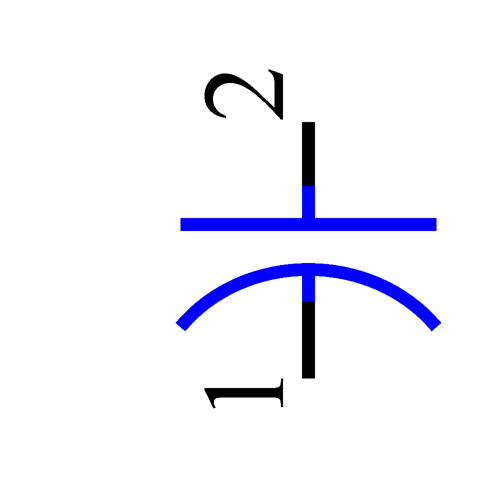

Images
