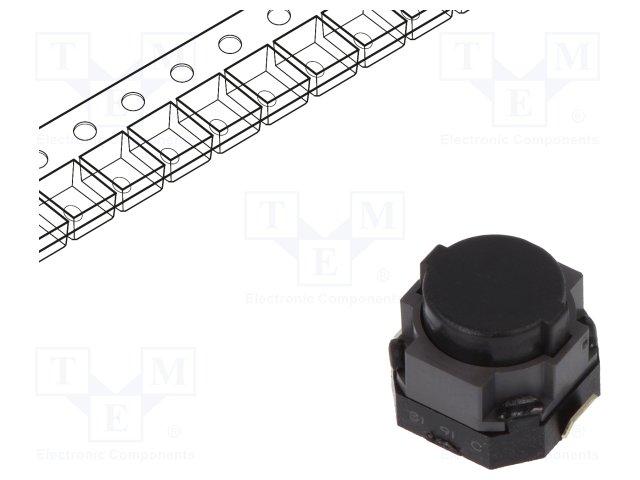

EVP-ASDC1A - Panasonic
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 12V DC 100000Cycle 2.5N SMD Embossed T/R
Technical Details
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Resistance | 100mΩ |
| Country of Origin | Japan, Mainland China |
| Current Rating | 50mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 5.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated, Non-Illuminated |
| Introduction Date | 2013-03-01 |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Max Operating Temperature | 90°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |

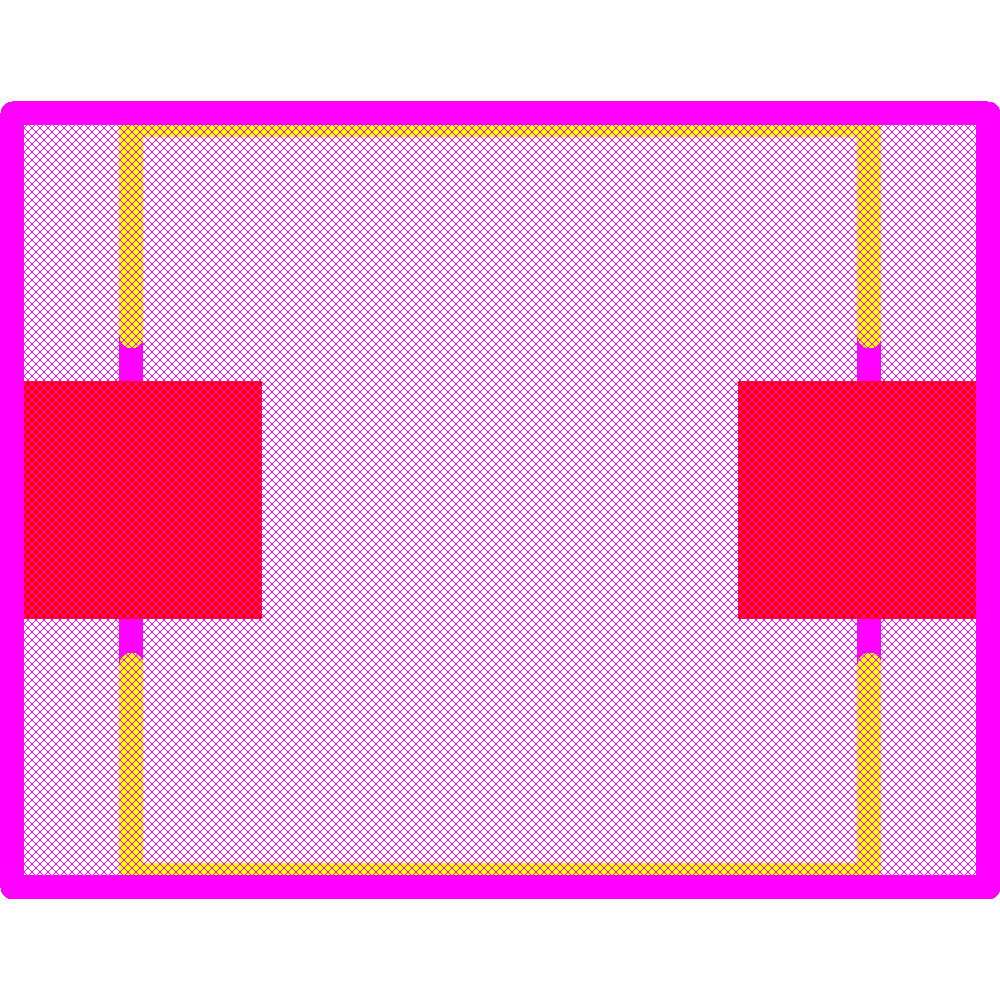

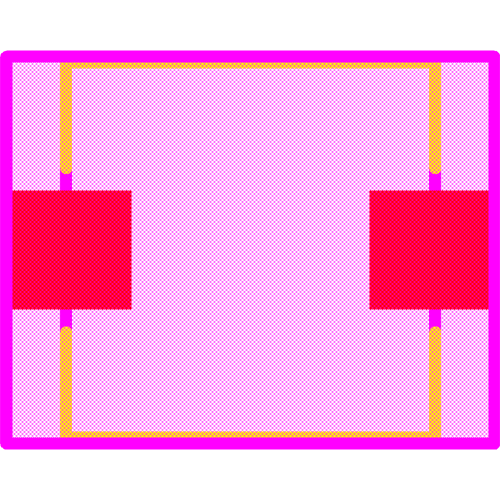

| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 2.5N |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 1.3mm |
| Termination | Gull Wing |

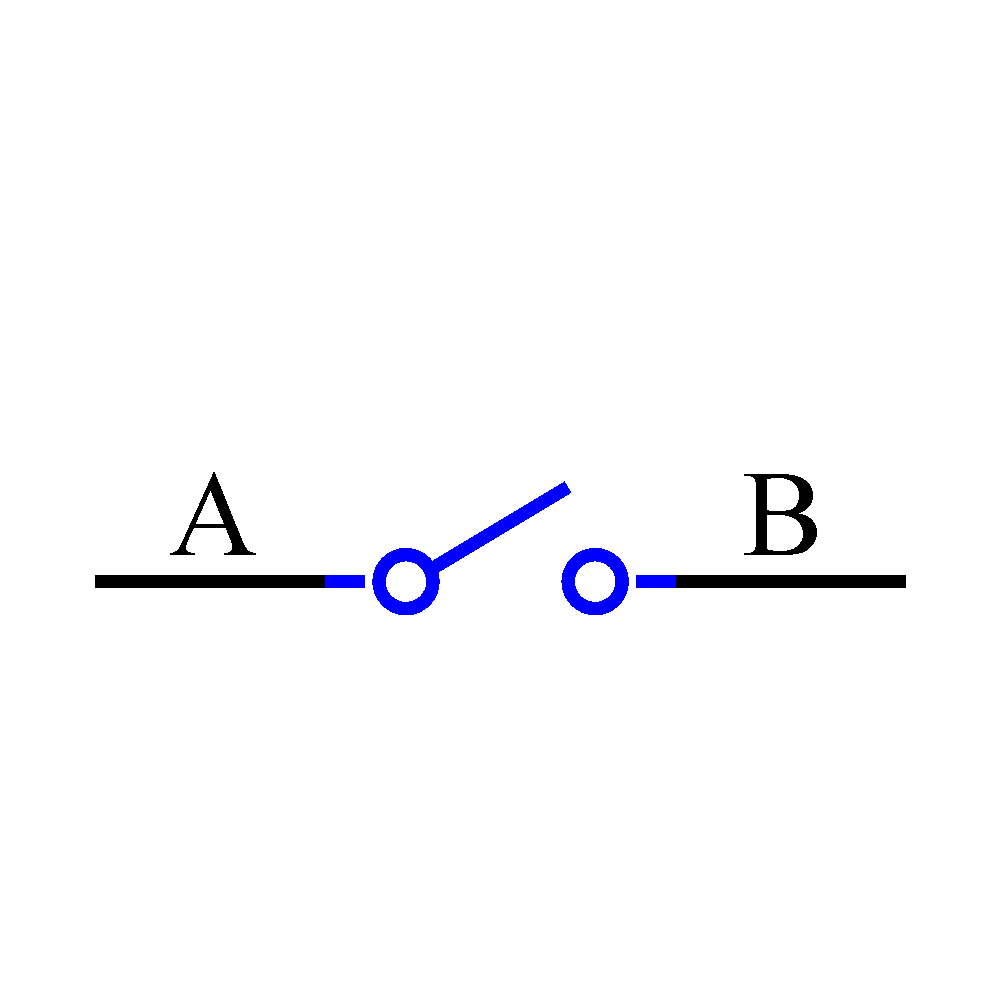

| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
