EVP-BFAC1A000 - Panasonic
Switch Tactile N.O. SPST Round Button J Lead 20mA 15VDC 1000000Cycles 2N SMD Emboss T/R
Technical Details
| Contact Current Rating | 20mA |
| Contact Resistance | 500mΩ |
| Country of Origin | Japan, Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 98µm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-21 |
| Length | 236µm |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2N |
| RoHS | Compliant |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 15V |
Compliance
RoHS : Unconfirmed

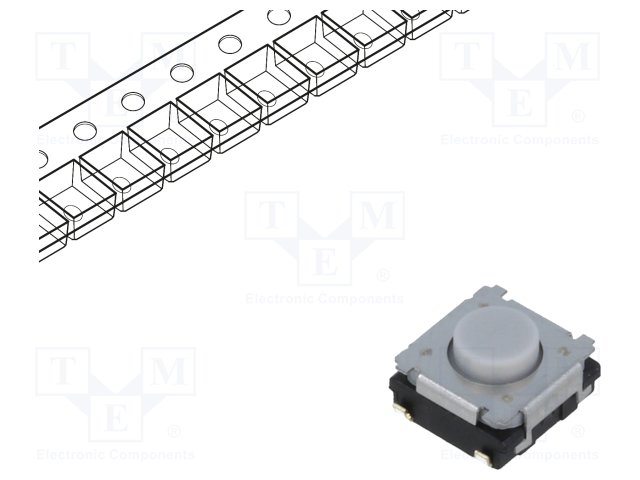

Images
