EVQ-P1905M - Panasonic
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 12VDC 100000Cycles 1.6N SMD Automotive T/R
Technical Details
| Actuator Length | 1.5mm |
| Case/Package | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Plating | Gold, Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Electrical Life | 100kcycles |
| Height | 3.5mm |
| Illumination Type | Illuminated, Non-Illuminated |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2.1N |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509065, 8536509065|8536509065|8536509065|8536509065|8536509065 |
| Switch Function | Off-Mom |
| Switch Travel | 1.3mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

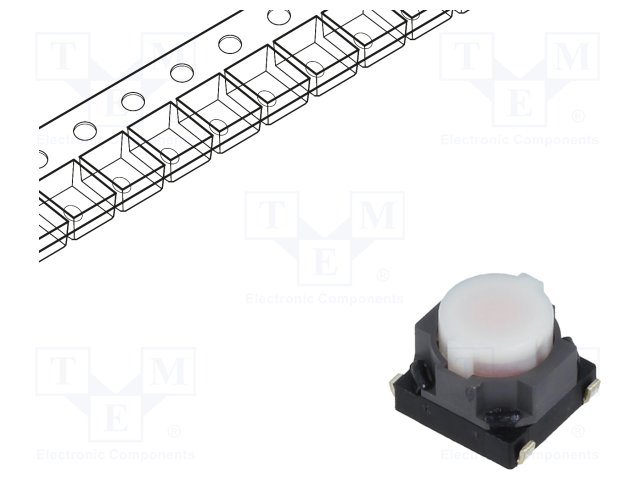

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Unknown | ||
| APEM | Production | ||
| APEM | Obsolete | ||
| Bourns | Obsolete | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Unknown | ||
| Panasonic | Production |
