EVQ-P2602W - Panasonic
Switch Tactile N.O. SPST Button J-Bend 0.02A 15VDC 3.5N SMD Automotive Embossed T/R
Technical Details
| Actuator Length | 850µm |
| Color | Natural |
| Contact Current Rating | 20mA |
| Contact Plating | Gold, Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 20mA |
| Depth | 5.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 200kcycles |
| Height | 1.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-02-25 |
| Isolation Voltage | 250Vrms |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Life (Cycles) | 200kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 200kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 3.5N |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 15V |
| Width | 4.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

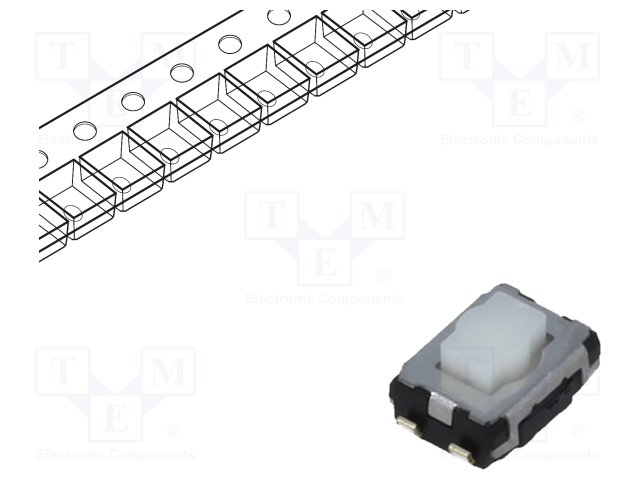

Images
