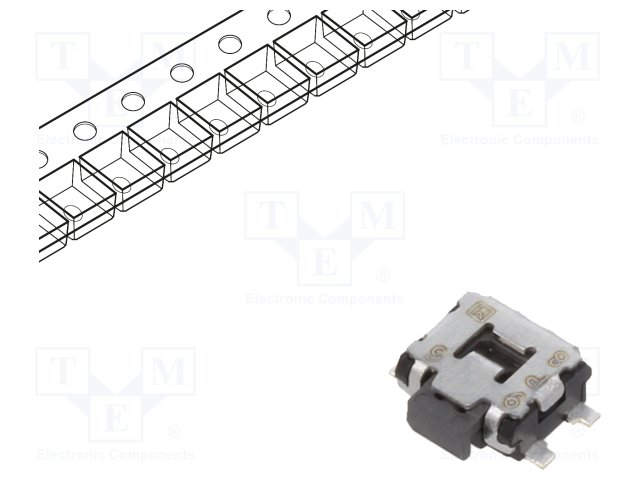

EVQ-P7L01P - Panasonic
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 1.6N SMD T/R
Technical Details
| Actuator Length | 650µm |
| Case/Package | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Resistance | 500mΩ |
| Electrical Life | 100kcycles |
| Height | 1.35mm |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Lead Free | Lead Free |
| Length | 3.55mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 1.6N |
| Orientation | Right Angle |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 200µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
