EVQ-Q2M02W - Panasonic

Switch Tactile ON OFF SPST Round Button J-Bend 0.02A 15VDC 1.3N SMD Embossed T/R

Actuator Length	700µm
Case/Package	SMD/SMT
Color	White
Contact Current Rating	20mA
Contact Plating	Silver
Contact Resistance	100mΩ
Country of Origin	Japan, Mainland China
Current Rating	20mA
Depth	6.6mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	1Mcycles
Height	1.8mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	2006-02-25
Lead Free	Lead Free
Length	6.5mm
Life (Cycles)	1Mcycles
Lifecycle Status	Production
Max Current Rating	20mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	15V
Mechanical Life	1Mcycles
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Positions	1
Operating Force	1.3N
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8536509065
Switch Function	Off-Mom
Switch Travel	250µm
Termination	SMD/SMT
Thickness	1.8mm
Throw Configuration	SPST
Voltage Rating (AC)	250V
Voltage Rating (DC)	15V
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

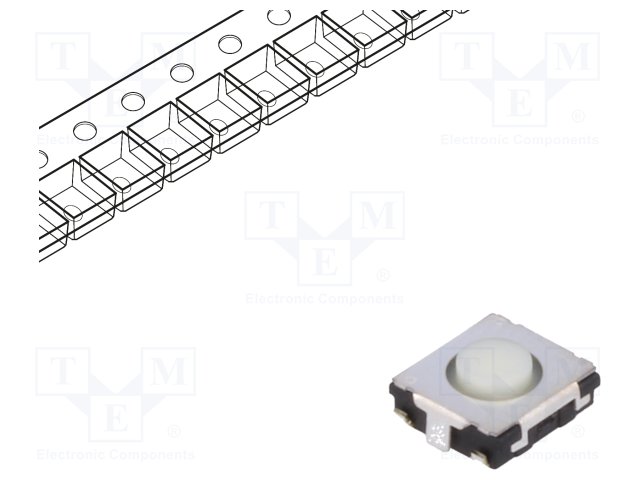

Panasonic EVQ-Q2M02W | TME

TME

Production

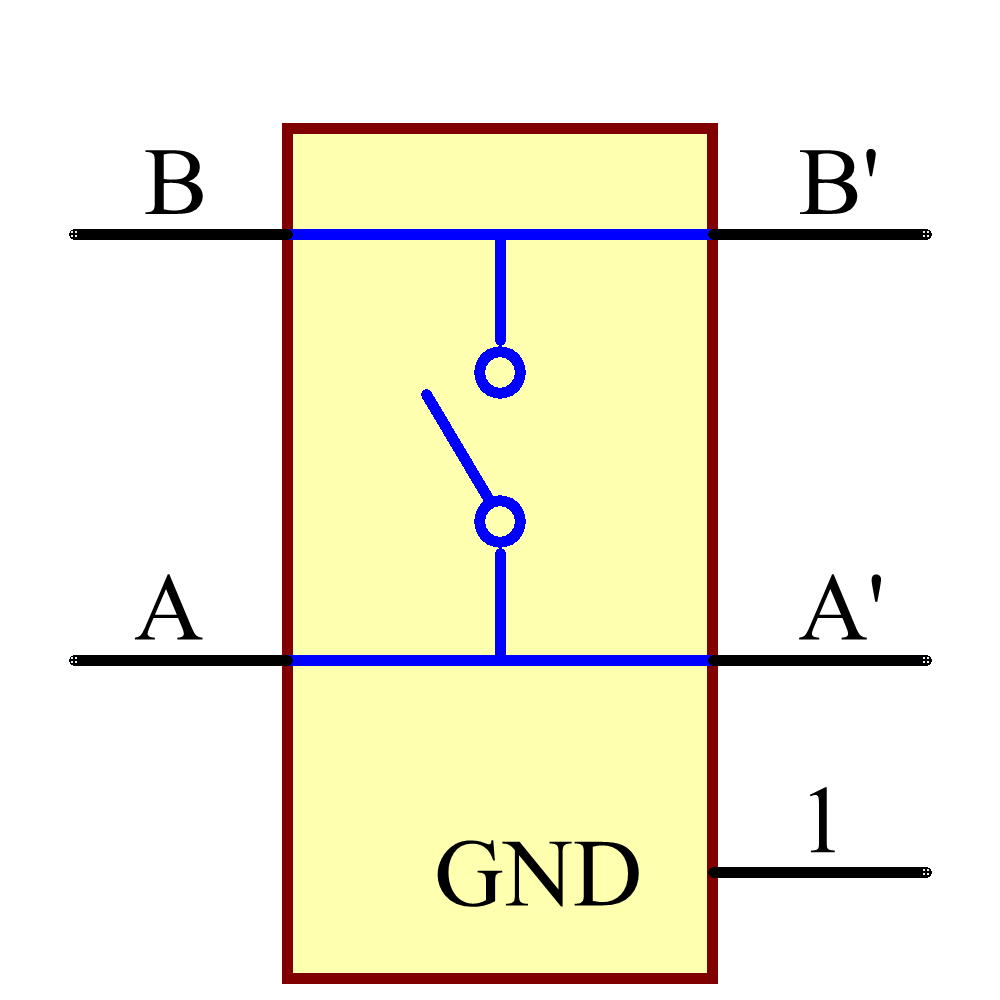

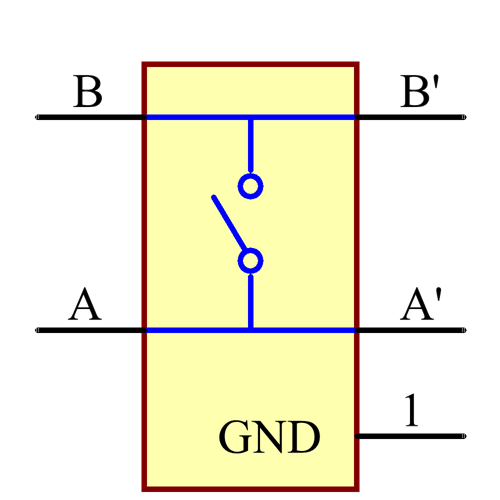

Symbol

‹ ›

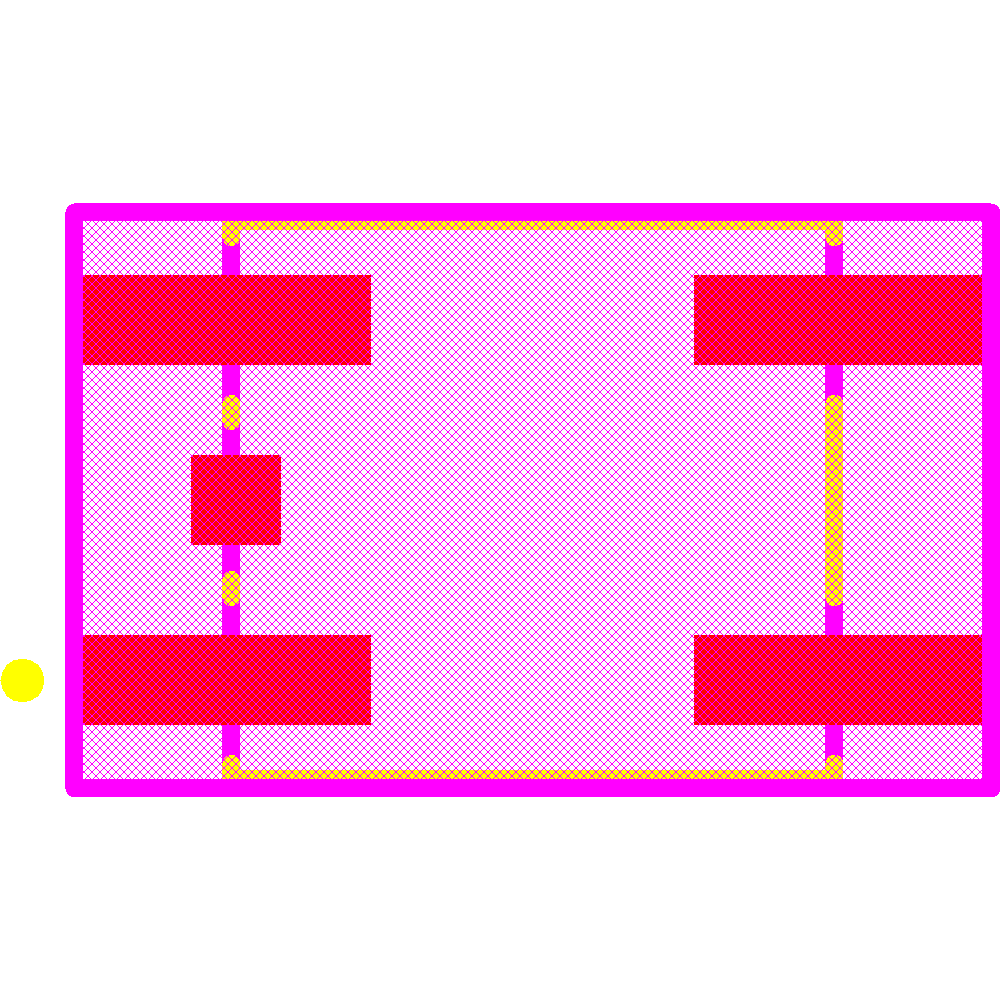

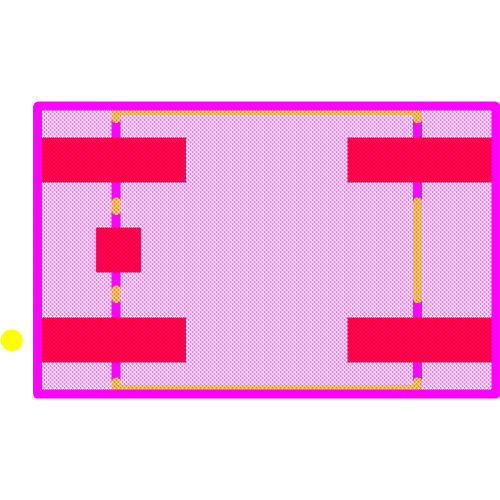

Footprint

‹ ›
