EVQ-Q2Y03W - Panasonic
Switch Tactile ON OFF SPST Round Button J-Bend 0.02A 15VDC 3.5N SMD Embossed T/R
Technical Details
| Actuator Length | 1.3mm |
| Case/Package | SMD/SMT |
| Color | White |
| Contact Current Rating | 20mA |
| Contact Resistance | 100mΩ |
| Country of Origin | Japan, Mainland China |
| Current Rating | 20mA |
| Depth | 6.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 1.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-02-25 |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Poles | 1 |
| Number of Positions | 1 |
| Operating Force | 3.5N |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | SMD/SMT |
| Thickness | 1.8mm |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 15V |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

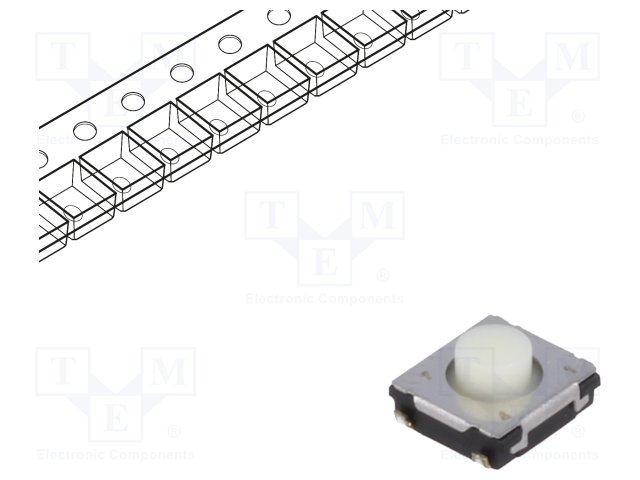

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Unknown | ||
| APEM | Production | ||
| APEM | Obsolete | ||
| Bourns | Obsolete | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Unknown | ||
| Panasonic | Production |
