Actuator Length	700µm
Case/Package	SMD/SMT
Color	White
Contact Current Rating	20mA
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	20mA
Electrical Life	100kcycles
Height	1.8mm
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Lead Free	Lead Free
Length	6.5mm
Life (Cycles)	100kcycles
Lifecycle Status	Production
Max Current Rating	20mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	15V
Mechanical Life	100kcycles
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Positions	1
Operating Force	3.5N
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	SMD/SMT
Thickness	1.8mm
Throw Configuration	SPST
Voltage Rating (AC)	250V
Voltage Rating (DC)	15V
Width	6mm

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
C&K Components	KT11-B2-JM-3-4LFS	Unknown
APEM	MJTP1122	Production
APEM	MJTP1122A	Obsolete
Bourns	STJW-690-RTR	Obsolete
Panasonic	EVQ-Q2H01W	Production
Panasonic	EVQ-Q2H03W	Production
Panasonic	EVQQ2K01W	Production
Panasonic	EVQ-Q2S03W	Production
Panasonic	EVQ-Q2U01W	Unknown
Panasonic	EVQ-Q2U02W	Production

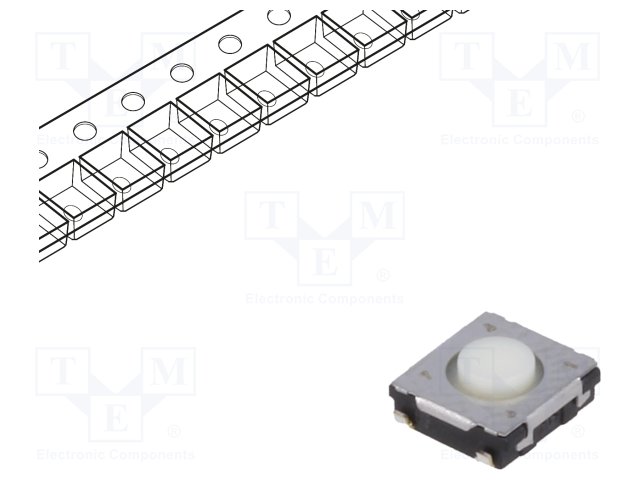

EVQQ2Y02W - Panasonic

Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 3.5N SMD Embossed T/R
