EXB-N8V220JX - Panasonic
Res Thick Film Array 22 Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 0804(4 X 0402) Concave SMD Punched Carrier T/R
Technical Details
| Case/Package | 0402 |
| Case Code (Imperial) | 0804 |
| Case Code (Metric) | 2010 |
| Circuit Type | Isolated |
| Composition | Thick Film |
| Contact Plating | Tin |
| Depth | 1mm |
| Height | 450µm |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 8 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Cut Tape |
| Power Dissipation | 31mW |
| Power Per Element | 31mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 22Ω |
| RoHS | Compliant |
| Part Series | Chip Resistor Array |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 500µm |
| Termination | Concave |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 1mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

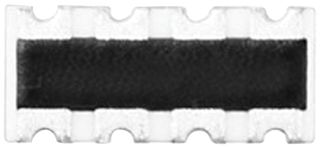

Images
