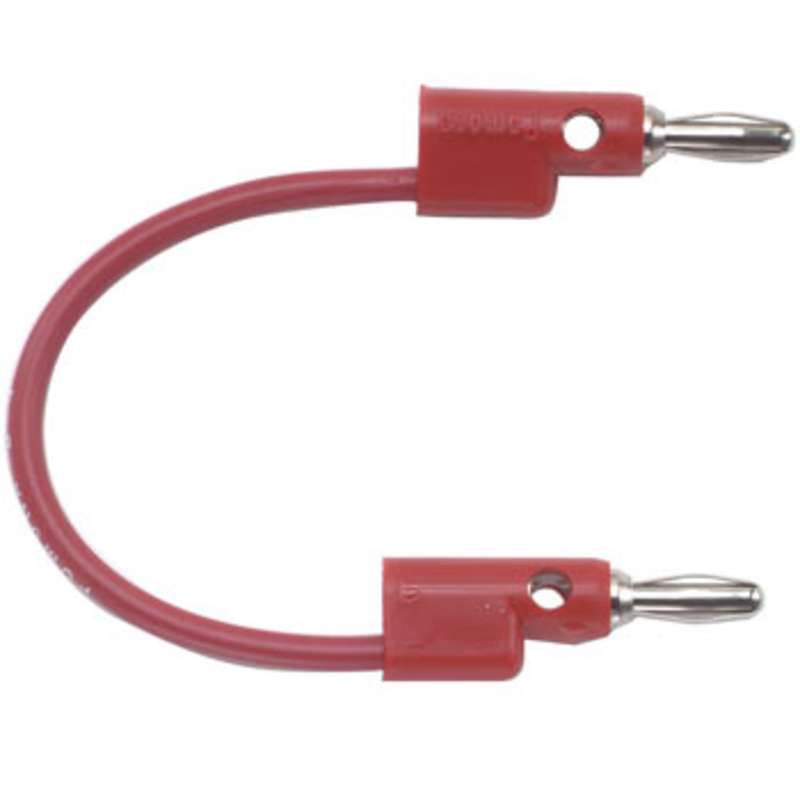

B-18-2 - Pomona Electronics
Cable Assembly, 1 Conductor(s), 18AWG, Flexible Cord And Fixture Wire
Technical Details
| Approvals | CE |
| Cable Length | 457mm |
| Color | Red |
| Connector Type | Plug |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Copper |
| Contact Plating | Nickel |
| Current Rating | 15A |
| Diameter | 3.66mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8544.60.20.00 |
| Insulation Material | PVC |
| Introduction Date | 1999-02-16 |
| Lead Free | Lead Free |
| Lead Length | 457mm |
| Length | 457mm |
| Lifecycle Status | Production |
| Material | Brass, Copper, Polypropylene |
| Max Current Rating | 15A |
| Max Operating Temperature | 55°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 6.03kV |
| Mount | Cable |
| Number of Conductors | 1 |
| Packaging | Bulk |
| REACH SVHC | No |
| RoHS | Compliant |
| Shielding | Unshielded |
| Voltage Rating | 5kV |
| Voltage Rating (AC) | 30V |
| Voltage Rating (DC) | 60V |
| Wire/Cable Diameter | 3.6576mm |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | PVC |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

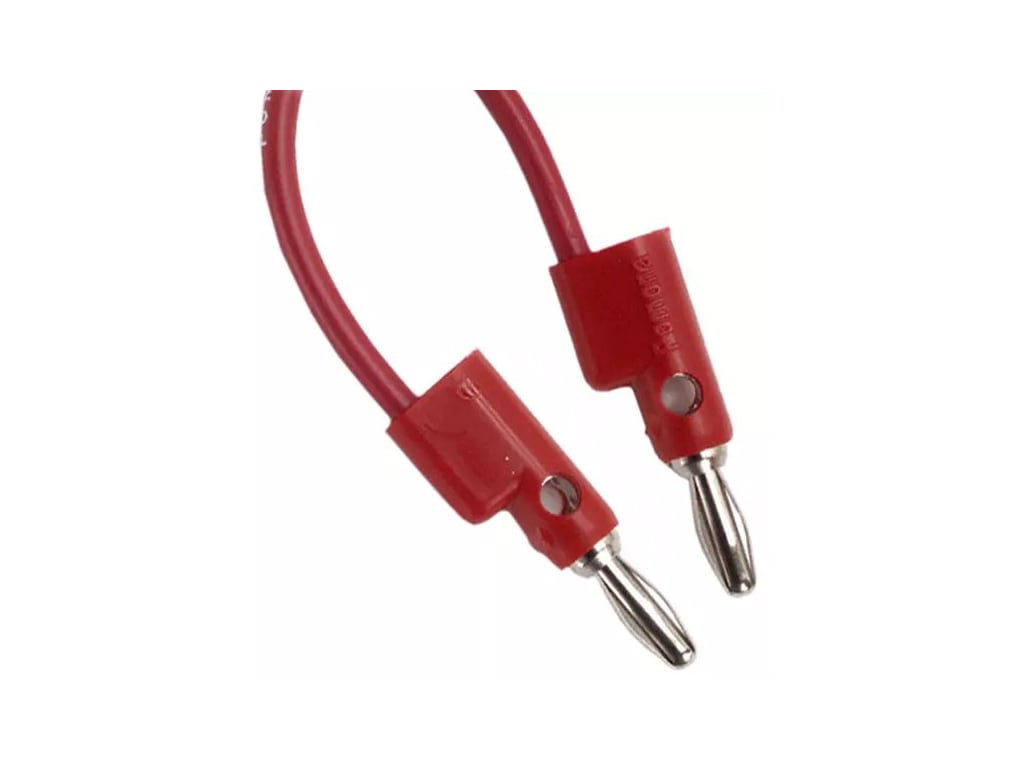

Images
