Chip Antenna, Single Band, Linear, Vertical, 1.559 GHz to 1.606 GHz, Surface Mount

Technical Details

Case/Package	CSMD
Frequency	1.575GHz
Gain	3.4dB
Height	1.3mm
Impedance	50Ω
Introduction Date	2008-09-25
Length	3.2mm
Lifecycle Status	Production
Max Frequency	1.58542GHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Bands	1
Number of Pins	2
Power Rating	2W
Radiation Hardening	No
REACH SVHC	Yes
Return Loss	-16dB
RoHS	Compliant
Schedule B	8529109000, 8529109000\|8529109000, 8529109000\|8529109000\|8529109000, 8529109000\|8529109000\|8529109000\|8529109000
Termination	Solder
Width	1.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

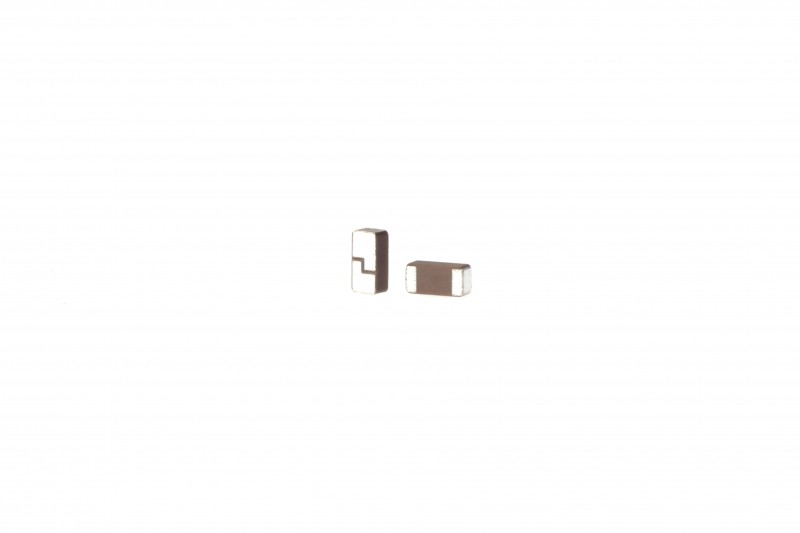

Pulse Electronics W3011A | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

Symbol

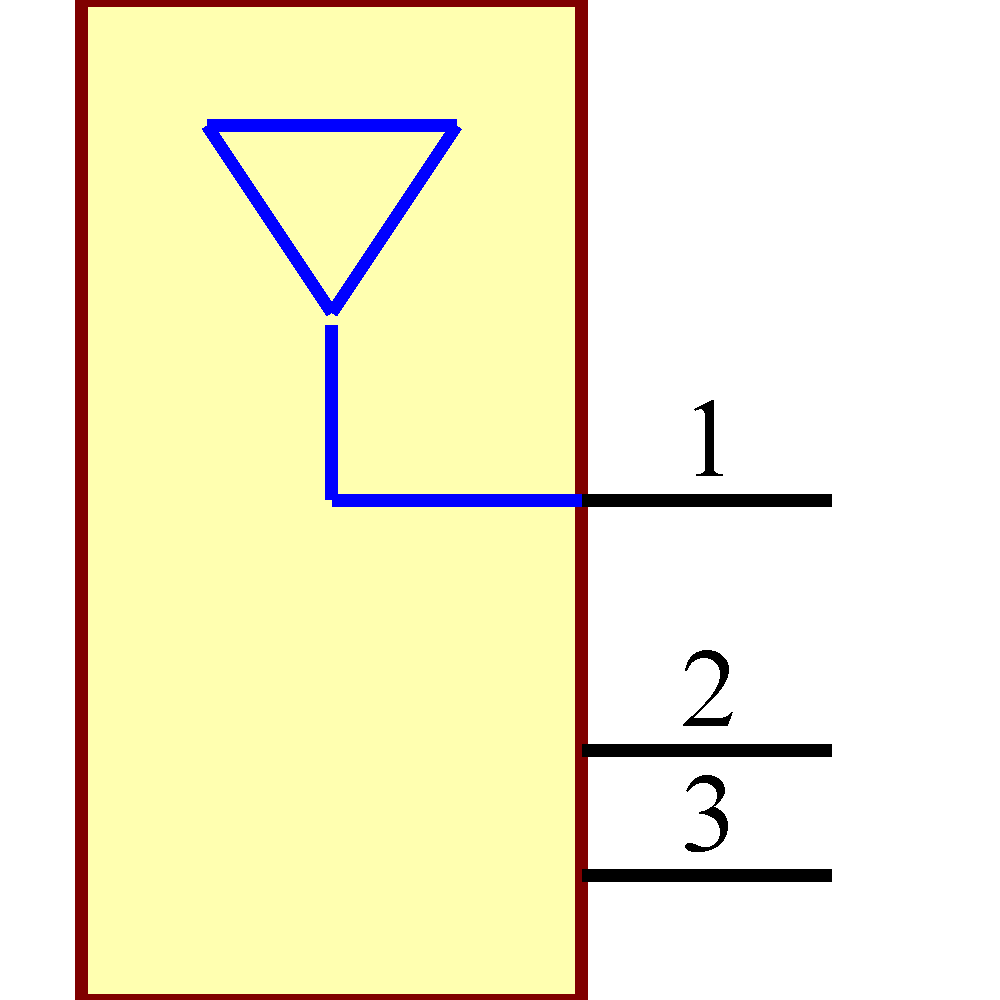

W3011A Symbol - Pulse Electronics

W3011A Symbol - Pulse Electronics

W3011A Symbol - Pulse Electronics

W3011A Symbol - Pulse Electronics

‹ ›

Footprint

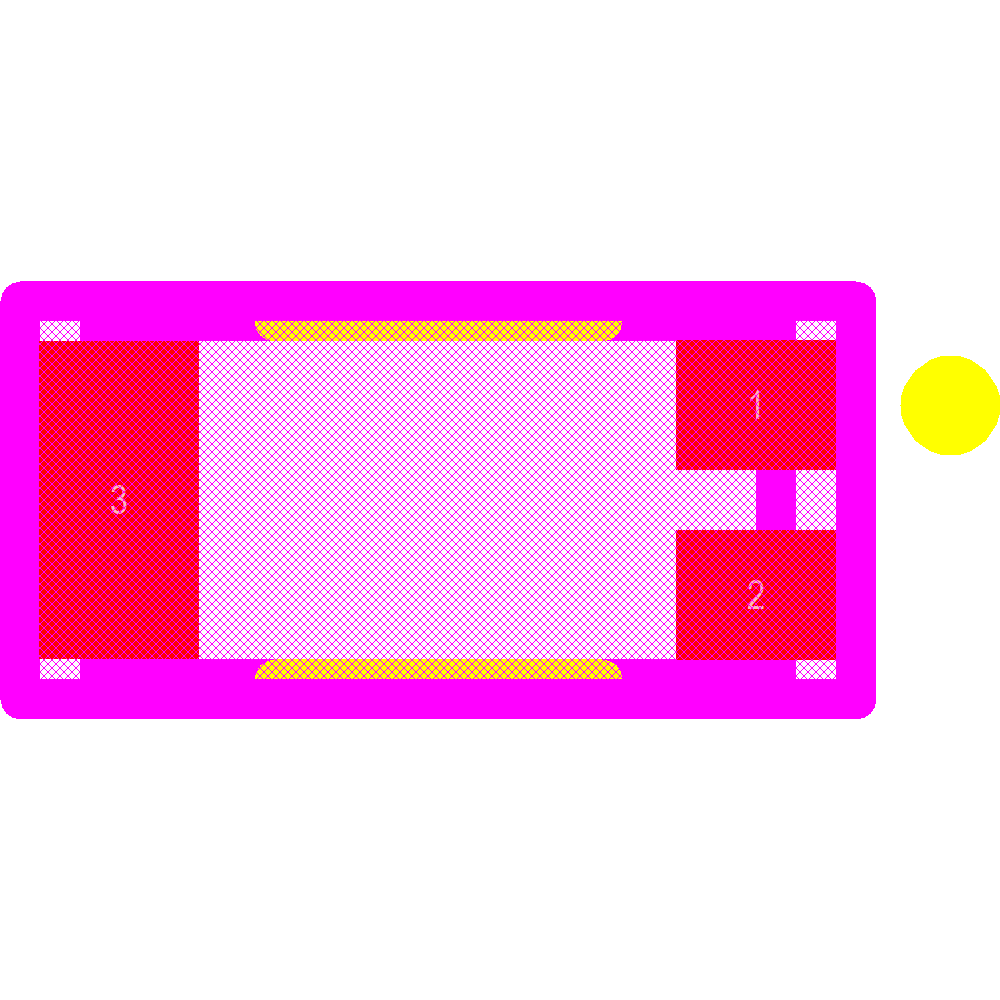

W3011A Footprint - Pulse Electronics

W3011A Footprint - Pulse Electronics

W3011A Footprint - Pulse Electronics

W3011A Footprint - Pulse Electronics

‹ ›
