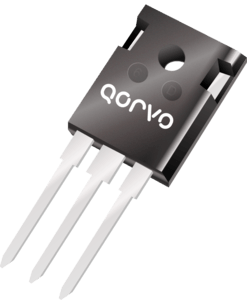

UJ4C075060L8S - Qorvo
Power Field-Effect Transistor, 27.8A I(D), 750V, 0.074ohm, 1-Element, N-Channel, Silicon Carbide, Junction Cascode FET
Technical Details
| Continuous Drain Current (ID) | 27.8A |
| Drain to Source Resistance | 74mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Introduction Date | 2023-11-16 |
| Lifecycle Status | Production |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 155W |
| Min Breakdown Voltage | 750V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Terminals | 8 |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
