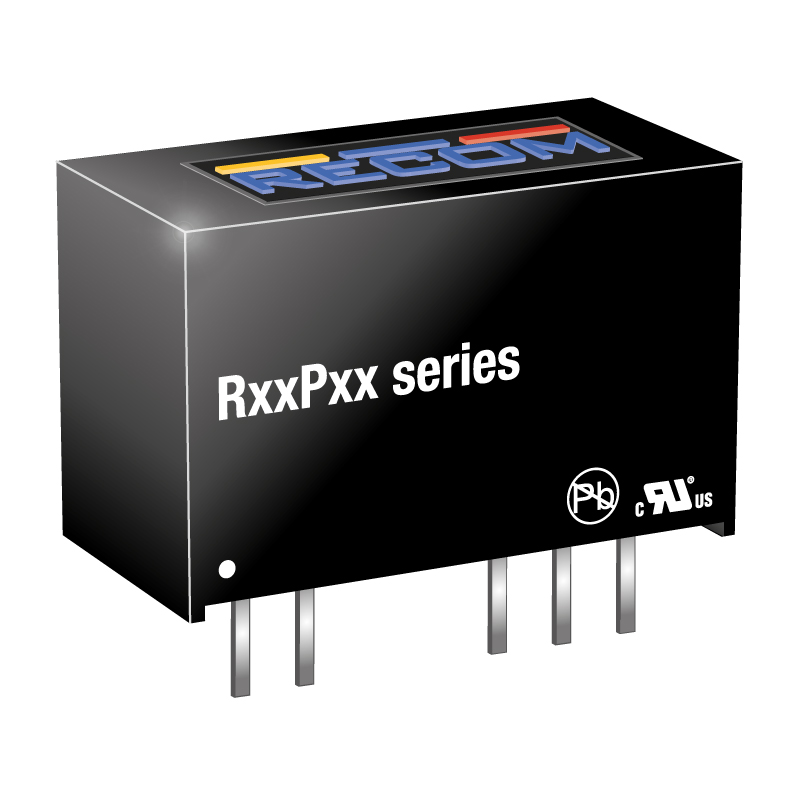

R05P15S/P - Recom Power
1 WATT DC/DC CONVERTER DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid
Technical Details
| Approvals | CB, CSA, EN, IEC, UL |
| Case/Package | SMA |
| Depth | 9.8mm |
| Efficiency | 83% |
| Features | SCP |
| Height | 12.5mm |
| Height - Seated (Max) | 13mm |
| Isolation | Isolated |
| Isolation Voltage | 6400Vrms |
| Length | 19.5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 90°C |
| Max Output Current | 66mA |
| Max Output Power | 1W |
| Max Output Voltage | 15.75V |
| Max Power Dissipation | 1W |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 14.25V |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 15V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Output Current | 66mA |
| Output Power | 1W |
| Output Voltage | 15V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 15V |
| Weight | 4.3g |
| Width | 9.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
