R05P215S/P - Recom Power
2W DC/DC-Converter 'ECONOLINE' SIP7 6.4kV unreg; V. In: 05; V. Out: 15; mA. Out: 132
Technical Details
| Case/Package | SMA |
| Current - Output 1 | 132mA |
| Depth | 19.5mm |
| Efficiency | 80% |
| Features | SCP |
| Height | 12.5mm |
| Height - Seated (Max) | 13mm |
| Isolation | Isolated |
| Isolation Voltage | 5200Vrms |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 5.5V |
| Max Input Voltage (DC) | 5.5V |
| Max Operating Temperature | 90°C |
| Max Output Current | 132mA |
| Max Output Power | 2W |
| Max Output Voltage | 15.75V |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Min Input Voltage (DC) | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 14.25V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 15V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 4 |
| Output Current | 132mA |
| Output Power | 2W |
| Output Voltage | 15V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switching Frequency | 50kHz |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 15V |
| Weight | 4.3g |
| Width | 9.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

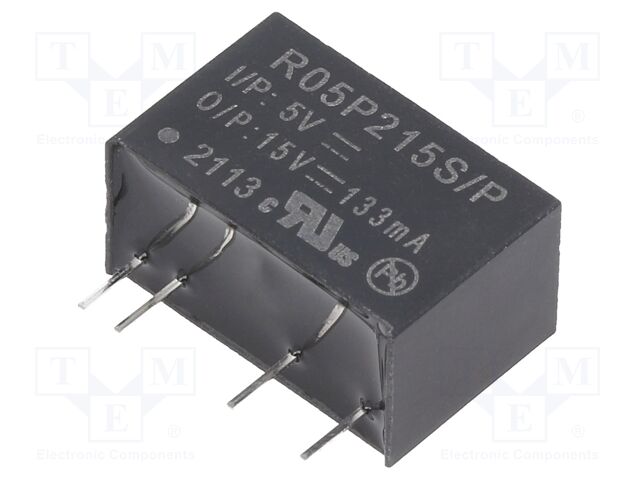

Images
