Technical Details
| Case/Package | SMA |
| Country of Origin | Mainland China, Taiwan |
| Current - Output 1 | 132mA |
| Depth | 19.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 80% |
| Height | 12.5mm |
| Height - Seated (Max) | 13mm |
| Introduction Date | 2009-05-19 |
| Isolation | Isolated |
| Isolation Voltage | 5200Vrms |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 13.2V |
| Max Input Voltage (DC) | 13.2V |
| Max Operating Temperature | 90°C |
| Max Output Current | 132mA |
| Max Output Power | 2W |
| Max Output Voltage | 15.75V |
| Max Power Dissipation | 2W |
| Min Input Voltage | 10.8V |
| Min Input Voltage (DC) | 10.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 14.25V |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 15V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Output Current | 132mA |
| Output Power | 2W |
| Output Voltage | 15V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409580 |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 15V |
| Weight | 4.3g |
| Width | 9.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

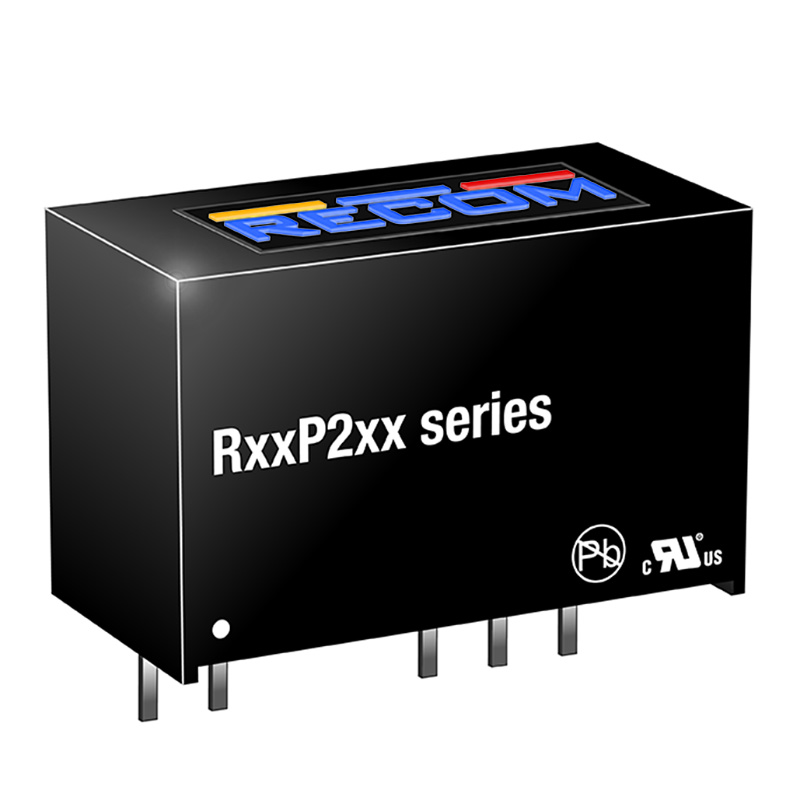

Images

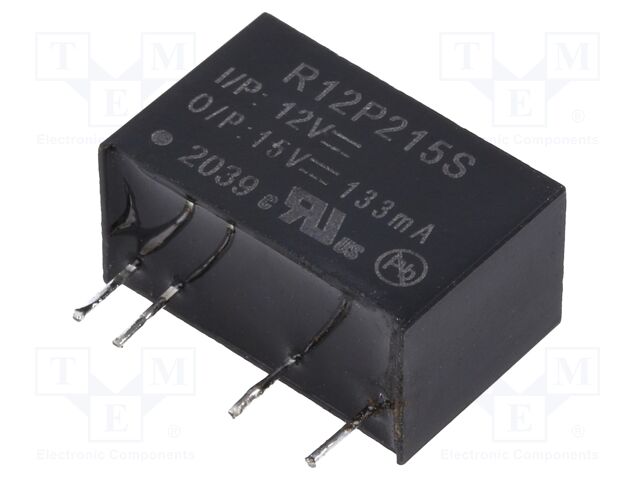

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production |
