Technical Details
| Case/Package | SMD/SMT |
| Country of Origin | Mainland China, Taiwan |
| Current - Output 1 | 84mA |
| Depth | 12.75mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 80% |
| Features | SCP |
| Height | 6.7mm |
| Height - Seated (Max) | 7.5mm |
| Introduction Date | 2010-02-22 |
| Isolation | Isolated |
| Isolation Voltage | 1000Vrms |
| Lead Free | Lead Free |
| Length | 12.75mm |
| Lifecycle Status | Production |
| Max Input Voltage | 5.5V |
| Max Input Voltage (DC) | 5V |
| Max Operating Temperature | 100°C |
| Max Output Current | 84mA |
| Max Output Power | 1W |
| Max Output Voltage | 12.6V |
| Max Power Dissipation | 1W |
| Min Input Voltage | 4.5V |
| Min Input Voltage (DC) | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 11.4V |
| Mount | PCB, Surface Mount |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Output Current | 84mA |
| Output Power | 1W |
| Output Voltage | 12V |
| Power Rating | 1W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409580, 8504409580|8504409580|8504409580|8504409580|8504409580 |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 12V |
| Weight | 1g |
| Width | 10.7mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

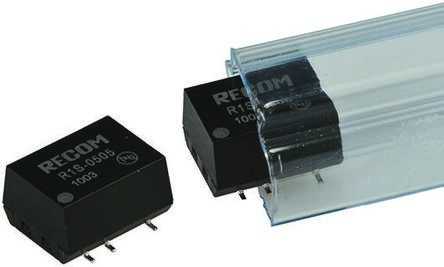

Images
