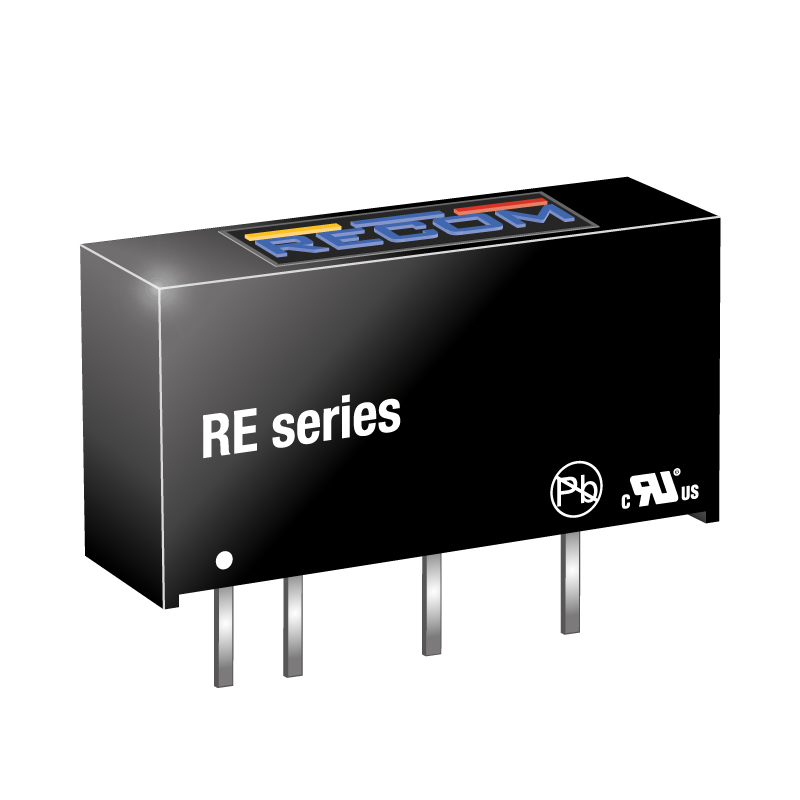

RE-1524S/H - Recom Power
1W DC/DC-Converter 'ECONOLINE' SIP7 2kV unreg; V. In: 15; V. Out: 24; mA. Out: 42
Technical Details
| Case/Package | SIP |
| Country of Origin | Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 85% |
| Features | SCP |
| Height | 10.2mm |
| Height - Seated (Max) | 10.7mm |
| Introduction Date | 2009-06-30 |
| Isolation Voltage | 2000Vrms |
| Lead Free | Lead Free |
| Length | 19.6mm |
| Lifecycle Status | Production |
| Max Input Voltage | 16.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 42mA |
| Max Output Power | 1W |
| Max Output Voltage | 25.2V |
| Max Power Dissipation | 1W |
| Min Input Voltage | 13.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 22.8V |
| Mount | Through Hole |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 4 |
| Output Current | 42mA |
| Output Power | 1W |
| Output Voltage | 24V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 24V |
| Weight | 2.2g |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production |
