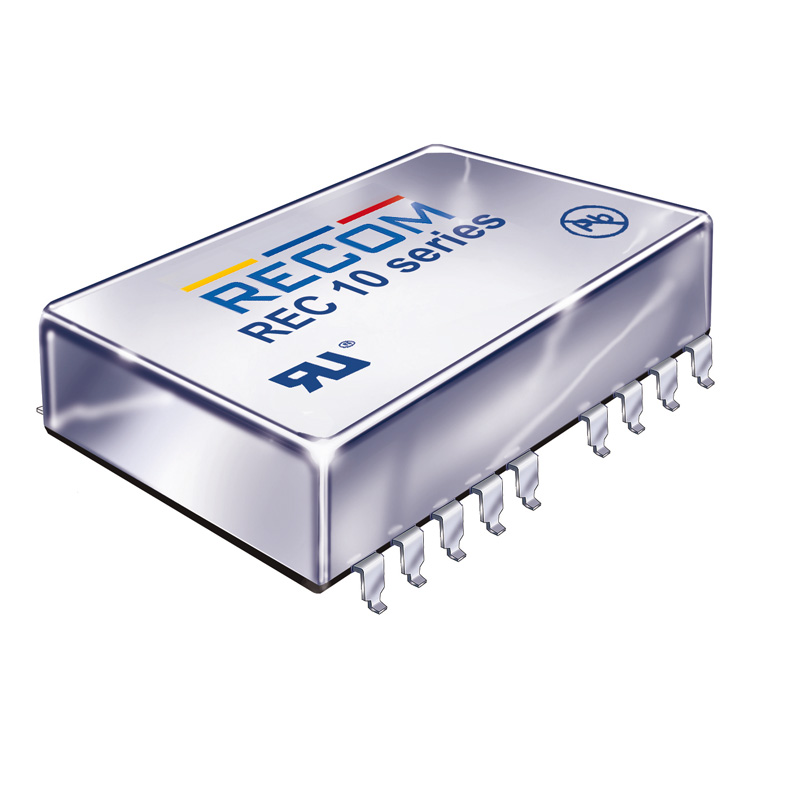

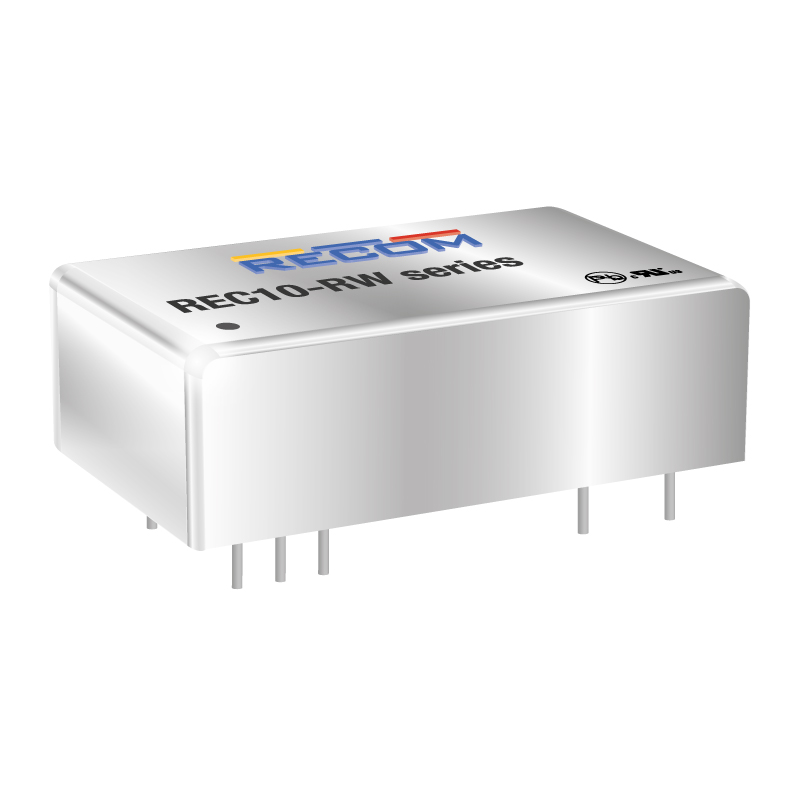

REC10-2405SRWZ/H3/A/M - Recom Power
10W DC/DC-Converter 'ECONOLINE' DIP24 3kV reg 4: 1; V. In: 9-36; V. Out: 05; mA. Out: 2000
Technical Details
| Body Material | Metal |
| Case/Package | DIP |
| Current - Output 1 | 2A |
| Depth | 20.3mm |
| Efficiency | 86% |
| Features | OCP, SCP |
| Height | 10.2mm |
| Height - Seated (Max) | 10.7mm |
| Isolation | Isolated |
| Isolation Voltage | 3000Vrms |
| Lead Free | Lead Free |
| Length | 32mm |
| Lifecycle Status | Production |
| Max Input Voltage | 36V |
| Max Operating Temperature | 65°C |
| Max Output Current | 2A |
| Max Output Power | 10W |
| Max Output Voltage | 5V |
| Max Power Dissipation | 10W |
| Min Input Voltage | 9V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 9 |
| Number of Terminals | 9 |
| Output Current | 2A |
| Output Power | 10W |
| Output Voltage | 5V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409580 |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 5V |
| Weight | 18g |
| Width | 20.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Sager Power Systems
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production |
