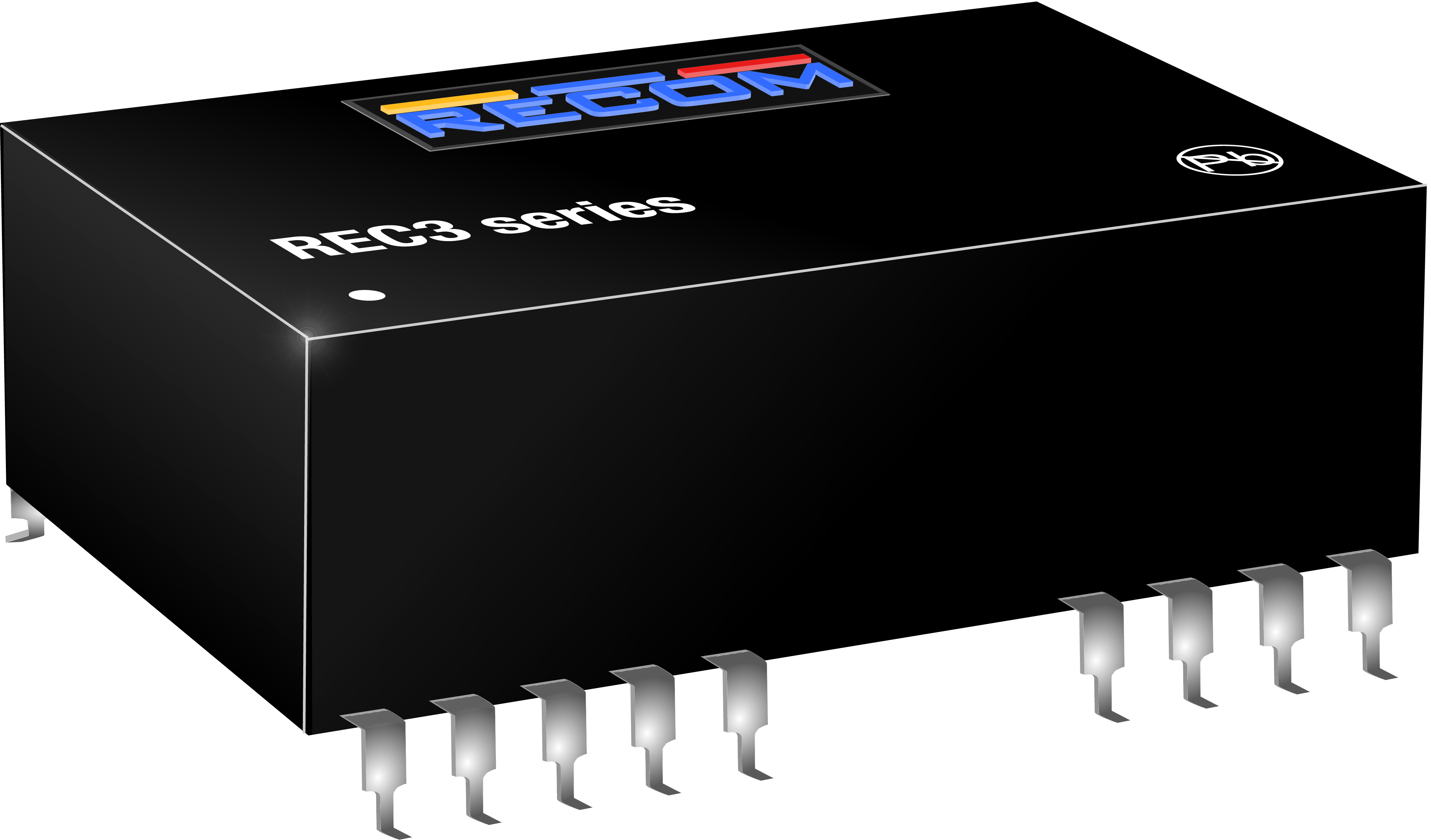

REC3-0505SRW/H2/A/CTRL - Recom Power
3W DC/DC-Converter 'ECONOLINE' DIP24 2kV reg 2: 1; V. In: 4.5-9; V. Out: 05; mA. Out: 600
Technical Details
| Case/Package | DIP |
| Country of Origin | Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 79% |
| Features | SCP |
| Height | 10.2mm |
| Height - Seated (Max) | 10.45mm |
| Introduction Date | 2007-04-26 |
| Isolation Voltage | 2000Vrms |
| Lead Free | Lead Free |
| Length | 32mm |
| Lifecycle Status | Production |
| Max Input Voltage | 9V |
| Max Operating Temperature | 80°C |
| Max Output Current | 600mA |
| Max Output Power | 3W |
| Max Output Voltage | 5.1V |
| Max Power Dissipation | 3W |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.9V |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 9 |
| Output Current | 600mA |
| Output Power | 3W |
| Output Voltage | 5V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 5V |
| Weight | 13g |
| Width | 20.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
