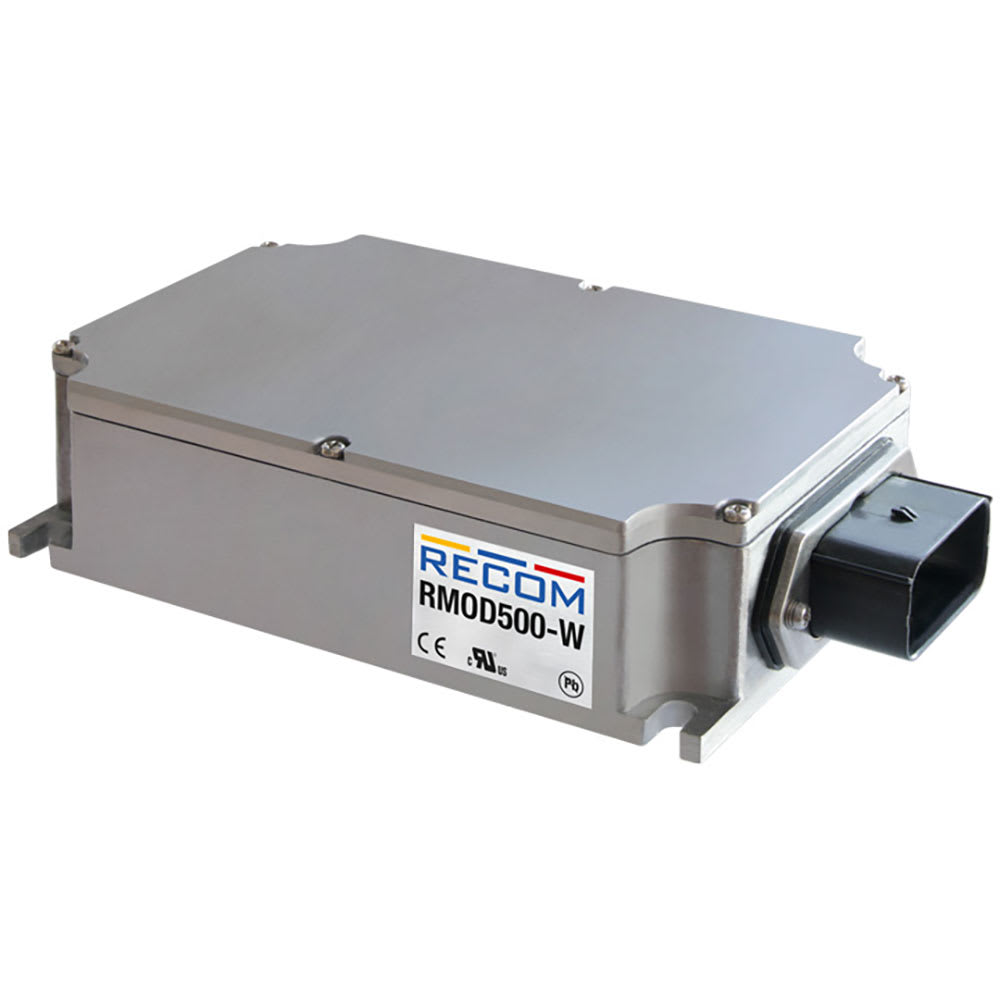

RMOD500-60-11.7SW/OR - Recom Power
DC-DC Regulated Power Supply Module, 1 Output, 497W, Hybrid
Technical Details
| Approvals | CE, CSA, EN, UL |
| Efficiency | 88.2% |
| Height - Seated (Max) | 45.5mm |
| Length | 198mm |
| Lifecycle Status | Production |
| Max Input Voltage | 96V |
| Max Operating Temperature | 90°C |
| Max Output Current | 42.5A |
| Max Output Power | 497W |
| Min Input Voltage | 32V |
| Min Operating Temperature | -40°C |
| Nominal Input Voltage | 48V |
| Nominal Output Voltage | 11.7V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 113mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 40
|
$ | 3,423.78 | 3,423.78 | 3,423.78 | 3,423.78 | 3,423.78 | 3,423.78 | ||
