RP12-1205SA - Recom Power
12W DC/DC-Converter 'POWERLINE' DIP24 1.6kV reg 2; V. In: 9-18; V. Out: 05; mA. Out: 2400
Technical Details
| Case/Package | DIP |
| Country of Origin | Mainland China, Taiwan |
| Depth | 20.3mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 86% |
| Features | OCP, OVP, SCP |
| Height | 10.2mm |
| Introduction Date | 2009-05-19 |
| Isolation | Isolated |
| Isolation Voltage | 1600Vrms |
| Lead Free | Lead Free |
| Length | 31.8mm |
| Lifecycle Status | Production |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Max Output Current | 2.4A |
| Max Output Power | 12W |
| Max Output Voltage | 5.1V |
| Max Power Dissipation | 12W |
| Min Input Voltage | 9V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 9 |
| Number of Terminals | 9 |
| Output Current | 2.4A |
| Output Power | 12W |
| Output Voltage | 5.1V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 5V |
| Weight | 18g |
| Width | 20.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

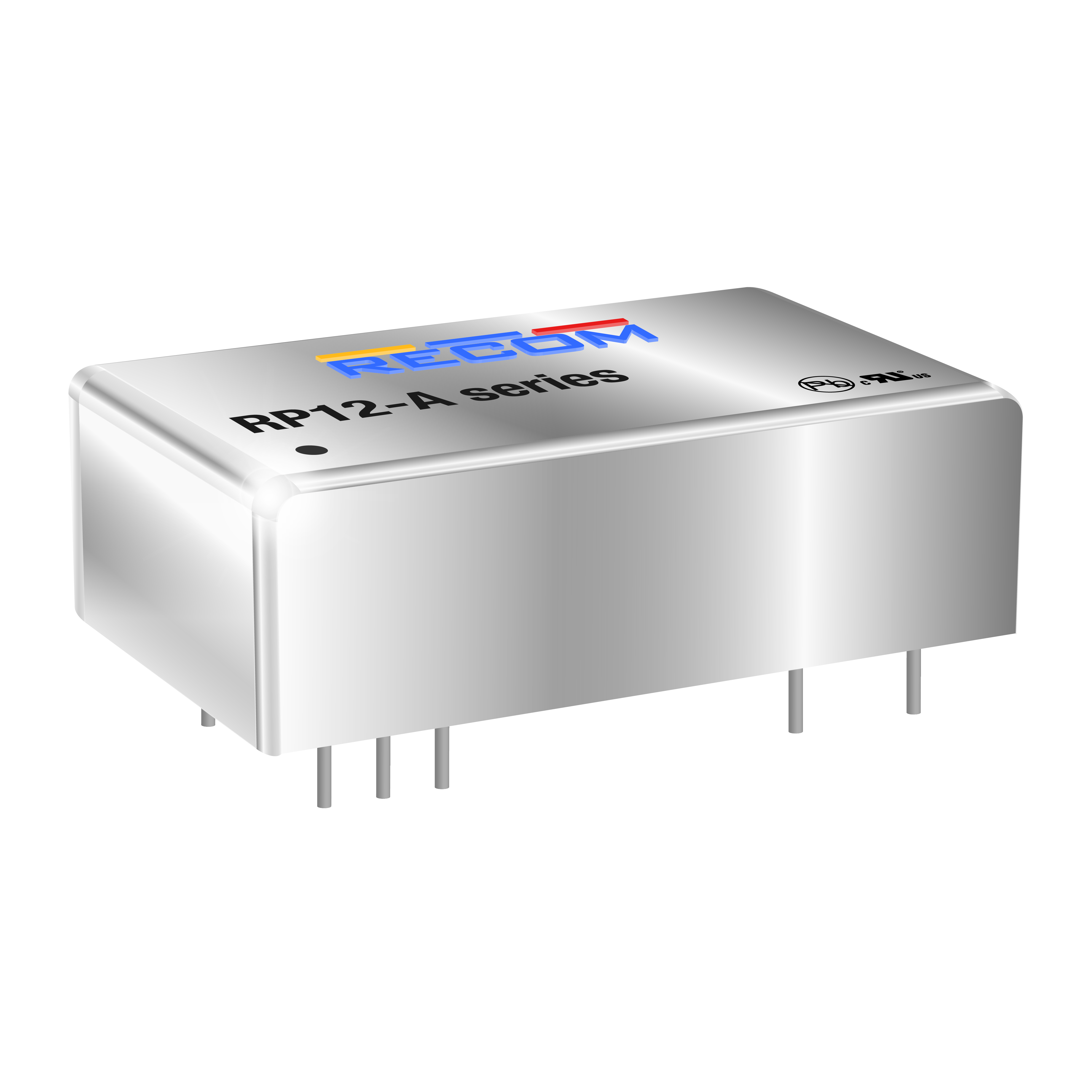

Images
